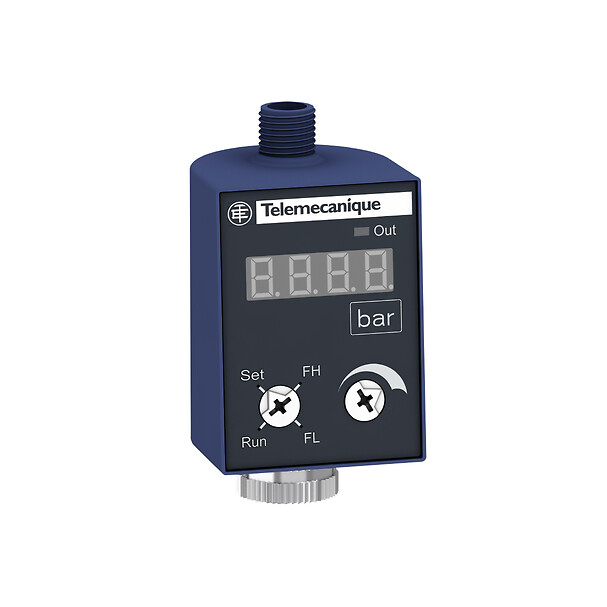

ZMLPA1P2SW - Electronic pressure sensors, Pressure sensors XM - Telemecanique - Electronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 4...20 mA, PNP, window, M12 - Telemecanique - 0
ZMLPA1P2SW - Electronic pressure sensors, Pressure sensors XM - Telemecanique - Electronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 4...20 mA, PNP, window, M12 - Telemecanique - 0

ZMLPA1P2SW – Telemecanique

On order
98,19 € excl. VAT
121,76 € incl. VAT
Electronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 4...20 mA, PNP, window, M12 - Telemecanique
 In cart
121,76 €
Electronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 4...20 mA, PNP, window, M12
SPECIFICATIONS
Main
Device short name ZMLP
Complementary
Accuracy <= - 0.1 % of the measuring range
Product certifications cULus
response time 300 ms
Product or component type Electronic pressure sensors
[us] rated supply voltage 24 V DC SELV (voltage limits: 17-33 V)
Analogue output function 4...20 mA
Current consumption <= 50 mA
marking CE
Local signalling 1 LED (yellow) for light ON when switch is actuated
Display accuracy <= 1 % of the measuring range
Discrete output type Solid state PNP, NO/NC programmable
measurement accuracy <= 1 % of the measuring range
Operating position Any position
Display type 4 digits 7 segments
switching function Window
Front material Polyester
Housing material PBT Valox
electrical connection Female connector M12, 2 pins, male connector M12, 4 pins
Voltage drop 2 VOLT
Shock resistance 25 gn conforming to IEC 60068-2-27
Response time on output <= 3 ms for analog output, <= 3 ms for discrete output
Type of output signal Analogue + discrete
Protection type Overload protectionshort-circuit protectionovervoltage protectionreverse polarity
Environment
ip degree of protection IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050
Range of product OsiSense XM
electromagnetic compatibility Immunity to conducted RF disturbances: 10 V 0.15...80 MHz conforming to IEC 61000-4-6, surge immunity test: 1 kV conforming to IEC 61000-4-5, electrical fast transient/burst immunity test: 2 kV conforming to IEC 61000-4-4, susceptibility to electromagnetic fields: 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, electrostatic discharge immunity test: 8 kV air, 4 kV contact conforming to IEC 61000-4-2
standards IEC 61000-6-2UL 508IEC 61000-6-4
vibration resistance 5 gn (f= 10-2000 Hz) conforming to IEC 60068-2-6
