ZCKS2 – Telemecanique
On order31,50 € excl. VAT
39,06 € incl. VAT

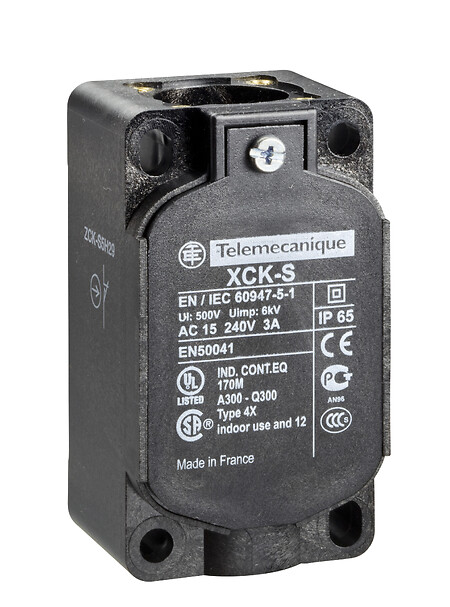

Limit switch body, Limit switches XC Standard, ZCKS, 2C/O, snap action, Pg13.5 - Telemecanique
Limit switch body, Limit switches XC Standard, ZCKS, 2C/O, snap action, Pg13.5.
This product is compatible with ZC2JC16, ZC2JC26, ZC2JD16, ZC2JD26
SPECIFICATIONS
Main
Body type
Fixed
Device short name
ZCKS
Series name
Standard format
Complementary
product compatibility
XCKS
Product or component type
Limit switch body
cable entry
1 entry tapped for Pg 13.5 cable gland
Contacts material
Silver plated contacts
contact operation
Snap action
Contacts type and composition
2 C/O
body material
Plastic
Ik degree of protection
IK03
Positive opening
Without
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm²
Resistance across terminals
0.25 mOhm conforming to IEC 60255-7 category 3
Terminals description iso n°1
(21-22)NC(11-12)NC
Environment
ip degree of protection
IP65
Range of product
Telemecanique Limit switches XC Standard
