ZCKM1C – Telemecanique
On order13,81 € excl. VAT
17,12 € incl. VAT

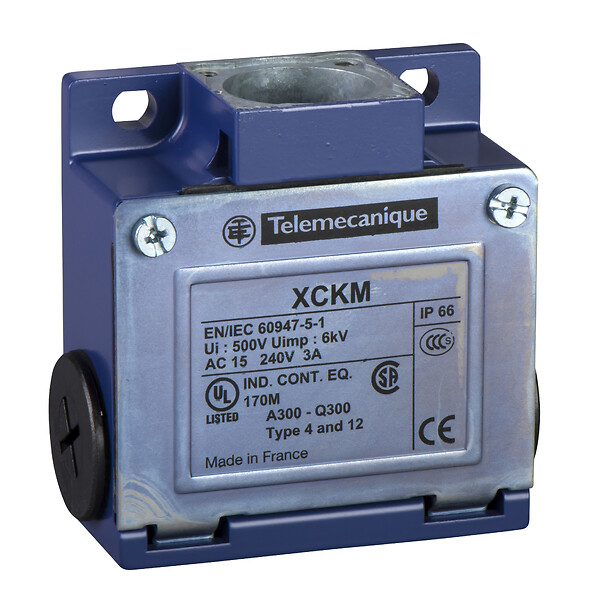

Limit switch body, Limit switches XC Standard, ZCK M, 1 NC + 1 NO, terminals - Telemecanique
Limit switch body, Limit switches XC Standard, ZCK M, 1 NC + 1 NO, terminals
SPECIFICATIONS
Main
Body type
Fixed
Device short name
ZCKM
Series name
Standard format
Complementary
product compatibility
XCKM
Product or component type
Limit switch body
cable entry
3 entries tapped for Pg 11 cable gland
Contacts material
Silver plated contacts
contact operation
Snap action
Contacts type and composition
1 NC + 1 NO
body material
Metal
Ik degree of protection
IK05
Positive opening
With
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Resistance across terminals
0.25 mOhm conforming to IEC 60255-7 category 3
Terminals description iso n°1
(21-22)NC(13-14)NO
Environment
ip degree of protection
IP66
Range of product
Telemecanique Limit switches XC Standard
