ZCKJ105H29 – Telemecanique
On order59,74 € excl. VAT
74,08 € incl. VAT

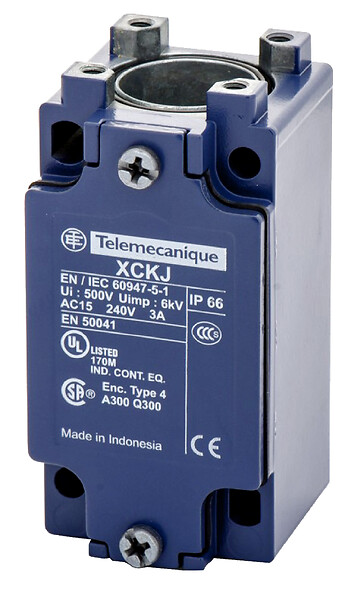

Limit switch body, Limit switches XC Standard, metal, 1 NO and 1 nc, ZCKJ - Telemecanique
Limit switch body, Limit switches XC Standard, metal, 1 NO and 1 nc, ZCKJ
SPECIFICATIONS
Main
Body type
Fixed
Device short name
ZCKJ
Series name
Standard format
Complementary
product compatibility
XCKJ
Product or component type
Limit switch body
cable entry
1 entry tapped for M20 x 1.5 cable gland
Contacts material
Silver plated contacts
contact operation
Snap action
Contacts type and composition
1 NC + 1 NO
body material
Metal
Electrical circuit type
Indicator light module 2 neon lights AC, 110/120 V (95...130 V) service life: 20000 h
Ik degree of protection
IK07
Positive opening
With
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Resistance across terminals
0.25 mOhm conforming to IEC 60255-7 category 3
Terminals description iso n°1
(11-12)NC(13-14)NO
Environment
ip degree of protection
IP66
Range of product
Telemecanique Limit switches XC Standard
