XY2CH13150 - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C - Telemecanique - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CH, 1NC+1 NO, Flush pushbutton - Telemecanique - 0
XY2CH13150 - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C - Telemecanique - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CH, 1NC+1 NO, Flush pushbutton - Telemecanique - 0

XY2CH13150 – Telemecanique

On order
94,74 € excl. VAT
117,47 € incl. VAT

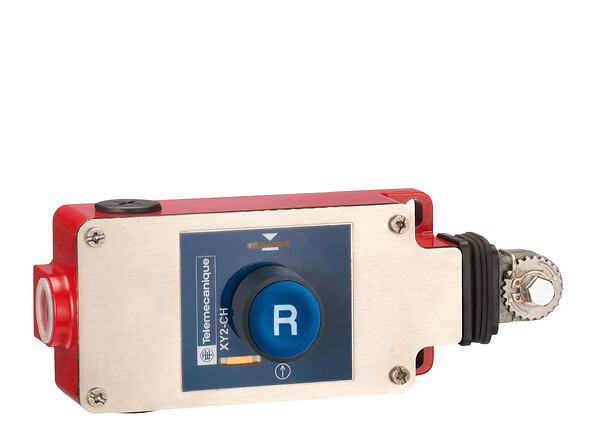

Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CH, 1NC+1 NO, Flush pushbutton - Telemecanique
 In cart
117,47 €
Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CH, 1NC+1 NO, Flush pushbutton. This product is compatible with DL1AA024, DL1AA127, DL1AA220, Q99900901, Q99900911, XY2CZ0024, XY2CZ0130, XY2CZ0230, XY2CZ301, XY2CZ3015, XY2CZ302, XY2CZ3020, XY2CZ303, XY2CZ404, XY2CZ601, XY2CZ602, XY2CZ611, XY2CZ703, XY2CZ705, XY2CZ708, XY2CZ715, XY2CZ718, XY2CZ918, XY2CZ9310, XY2CZ9315, XY2CZ9320, XY2CZ9330
SPECIFICATIONS
Main
Device short name XY2CH
reset By flush push-button
Complementary
compatibility code XY2CH
Product certifications UL category NISD emergency stop devices, CCC
Product or component type Latching emergency stop rope pull switch
Connections - terminals Screw clamp terminal, 1 x 0.5...2 x 1.5 mm²
marking CE
Housing colour Red RAL 3000
contact operation Slow-break
Contacts type and composition 1 NC + 1 NO
safety reliability data B10d = 4000000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear
body material Zamak
Local signalling Without pilot light
cover material Stainless steel
Positive opening With conforming to IEC 60947-5-1
trigger cable anchor point RH or LH side
Shock resistance 50 gn 11 ms conforming to IEC 60068-2-27
Resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Safety level Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Terminals description iso n°1 (21-22)NC(13-14)NO
Environment
ip degree of protection IP65 conforming to IEC 60529
Range of product Telemecanique Emergency stop rope pull switches XY2C
overvoltage category Class I conforming to IEC 61140, class I conforming to NF C 20-030
standards Machinery directive 2006/42/ECIEC 60947-5-5IEC 60947-5-1IEC 60204-1work equipment directive 2009/104/ECISO 13850
vibration resistance 10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
protective treatment TC
