XY2CEDB290 - Dual emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C - Telemecanique - Dual emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, e 2x(1NC+1NO), Pg13.5, boot. pb, low force - Telemecanique - 0
XY2CEDB290 - Dual emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C - Telemecanique - Dual emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, e 2x(1NC+1NO), Pg13.5, boot. pb, low force - Telemecanique - 0

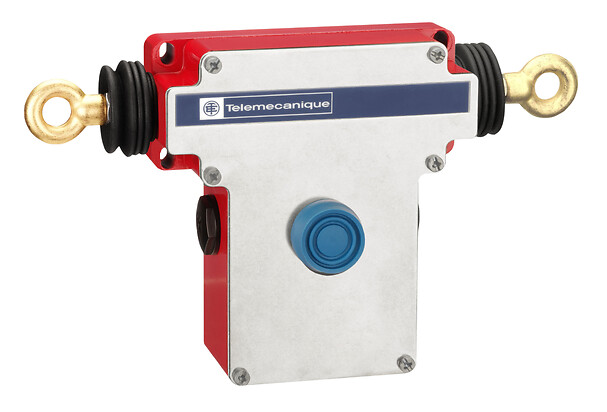

XY2CEDB290 – Telemecanique

On order
245,28 € excl. VAT
304,15 € incl. VAT
Dual emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, e 2x(1NC+1NO), Pg13.5, boot. pb, low force - Telemecanique
 In cart
304,15 €
Dual emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, e 2x(1NC+1NO), Pg13.5, boot. pb, low force. This product is compatible with Q99900901, Q99900911, XY2CZ105, XY2CZ107, XY2CZ110, XY2CZ213, XY2CZ403, XY2CZ601, XY2CZ602, XY2CZ611, XY2CZ705, XY2CZ708, XY2CZ712, XY2CZ713, XY2CZ715, XY2CZ718, XY2CZ800, XY2CZ801, XY2CZ805, XY2CZ96100, XY2CZ96140, XY2CZ96200, ZALVB4, ZALVB5, ZALVG4, ZALVG5, ZALVM4, ZALVM5, ZB5AA639, ZB5AC64, ZB5AG612R26, ZB5AG6R26, ZB5AP6S, ZB5AZ901, ZB5AZ905
SPECIFICATIONS
Main
Device short name XY2CED
reset By booted push-button
Complementary
compatibility code XY2CED
Product certifications UL category NISD emergency stop devices, CSA, CCC, EAC
Product or component type Dual emergency stop rope pull switch
Connections - terminals Screw clamp terminal, 1 x 0.5...2 x 1.5 mm²
marking CE
Bellow material Nitril
Housing colour Red RAL 3000
contact operation Slow-break
Contacts type and composition 2 x (1 NC + 1 NO)
safety reliability data B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear
body material Zamak
Local signalling Without pilot light
cover material Stainless steel
Positive opening With conforming to IEC 60947-5-1
trigger cable anchor point RH and LH sides
Shock resistance 50 gn 11 ms conforming to IEC 60068-2-27
Resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3
Safety level Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Terminals description iso n°1 (21-22)NC(13-14)NO
Environment
ip degree of protection IP66 conforming to IEC 60529
Range of product Telemecanique Emergency stop rope pull switches XY2C
overvoltage category Class I conforming to IEC 61140
standards CSA C22.2 No 14machinery directive 2006/42/ECIEC 60947-5-5UL 508IEC 60947-5-1IEC 60204-1work equipment directive 2009/104/ECISO 13850
vibration resistance 10 gn (f= 10-300 Hz) conforming to IEC 60068-2-6
protective treatment TC
