XY2CEDA597 - Telemecanique ⚡

XY2CEDA597 - Dual emergency stop rope pull switch, Telemecanique rope pull switches XY2C - Telemecanique - Dual emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e 2x(1NC+1NO), Pg13.5, key release pb pilot light - Telemecanique - 0

XY2CEDA597 – Telemecanique

On order

278,32 € excl. VAT

345,12 € incl. VAT

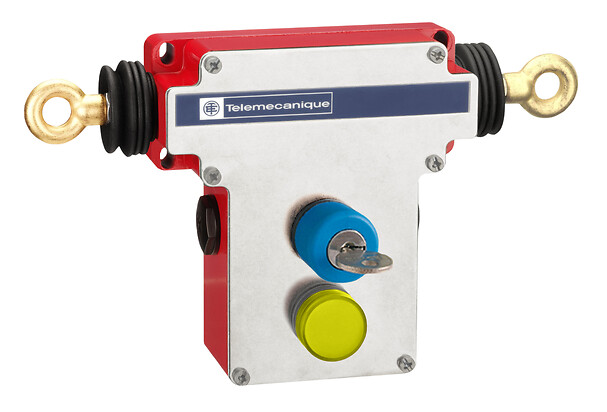

Dual emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e 2x(1NC+1NO), Pg13.5, key release pb pilot light - Telemecanique

In cart

345,12 €

Dual emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e 2x(1NC+1NO), Pg13.5, key release pb pilot light

SPECIFICATIONS

Main

Device short name XY2CED

reset By key-release push-button

Complementary

key number 455

compatibility code XY2CED

Product certifications UL category NISD emergency stop devices, CSA, CCC, EAC

Product or component type Dual emergency stop rope pull switch

Connections - terminals Screw clamp terminal, 1 x 0.5...2 x 1.5 mm²

marking CE

Bellow material Nitril

Housing colour Red RAL 3000

contact operation Slow-break

Contacts type and composition 2 x (1 NC + 1 NO)

safety reliability data B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear

body material Zamak

Local signalling With pilot light, yellow, 230 V

cover material Stainless steel

Positive opening With conforming to IEC 60947-5-1

trigger cable anchor point RH and LH sides

Shock resistance 50 gn 11 ms conforming to IEC 60068-2-27

Resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3

Safety level Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508

Terminals description iso n°1 (21-22)NC(13-14)NO

Environment

ip degree of protection IP65 conforming to IEC 60529

Range of product Telemecanique Emergency stop rope pull switches XY2C

overvoltage category Class I conforming to IEC 61140

standards CSA C22.2 No 14machinery directive 2006/42/ECIEC 60947-5-5UL 508IEC 60947-5-1IEC 60204-1work equipment directive 2009/104/ECISO 13850

vibration resistance 10 gn (f= 10-300 Hz) conforming to IEC 60068-2-6

protective treatment TC
