XY2CEDA490EX - Dual emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C - Telemecanique - Dual emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, e EX, 2x(1NC+1NO), key release pb - Telemecanique - 0
XY2CEDA490EX - Dual emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C - Telemecanique - Dual emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, e EX, 2x(1NC+1NO), key release pb - Telemecanique - 0

XY2CEDA490EX – Telemecanique

On order
328,21 € excl. VAT
406,98 € incl. VAT

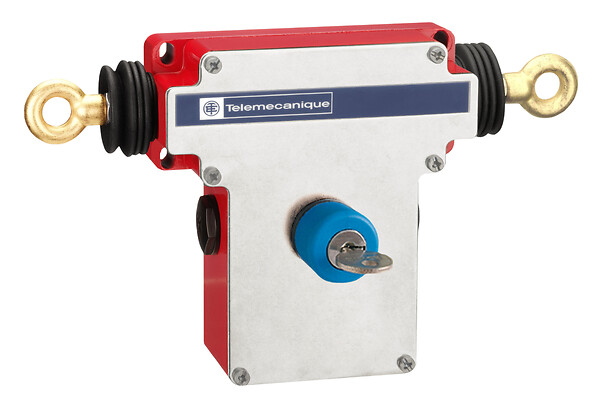

Dual emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, e EX, 2x(1NC+1NO), key release pb - Telemecanique
 In cart
406,98 €
Dual emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, e EX, 2x(1NC+1NO), key release pb. This product is compatible with XY2CZ105, XY2CZ107, XY2CZ110, XY2CZ213, XY2CZ404, XY2CZ524, XY2CZ601, XY2CZ702, XY2CZ704, XY2CZ705, XY2CZ708
SPECIFICATIONS
Main
Device short name XY2CED
reset By key-release push-button
Complementary
key number 421
Product certifications INERIS 04ATEX0015IEC-Ex INE 16.0001X
Auxiliary contacts operation Slow-break
Product or component type Dual emergency stop rope pull switch
Connections - terminals Screw clamp terminal, 1 x 0.5...2 x 1.5 mm², screw clamp terminal, 1 x 0.5...2 x 1.5 mm²
marking II2 D-Ex tb IIIC T85°C Db IP65
Housing colour Red RAL 3000, red RAL 3000
Contacts type and composition 2 x (1 NC + 1 NO)
Electrical shock protection class Class I conforming to EN/IEC 61140, class I conforming to EN/IEC 61140, class I conforming to NF C 20-030, class I conforming to NF C 20-030
safety reliability data B10d = 300000 value given for a life time of 20 years limited by mechanical or contact wear
Local signalling Without pilot light
Positive opening With conforming to EN/IEC 60947-5-1 section 3, with conforming to EN/IEC 60947-5-1 section 3
trigger cable anchor point RH and LH sides
Shock resistance -
Resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Safety level Can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1
Environment
Directives 2014/34/EU - ATEX directive
ip degree of protection IP65
Range of product Telemecanique Emergency stop rope pull switches XY2C
Dust zone Zone 21 - 22
standards EN/IEC 60079-31EN/IEC 60079-0
vibration resistance 10 gn (f= 10-300 Hz) conforming to IEC 60068-2-6
protective treatment TC
