XY2CE1E296TK - Telemecanique ⚡

XY2CE1E296TK - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C - Telemecanique - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable XY2CE, 300 V AC, 10 A - Telemecanique - 0

XY2CE1E296TK – Telemecanique

On order

214,03 € excl. VAT

265,40 € incl. VAT

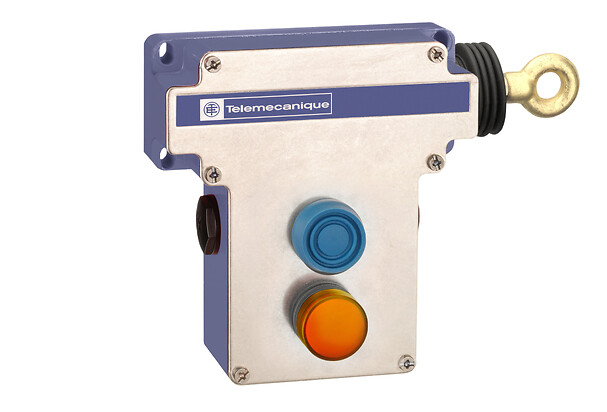

Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable XY2CE, 300 V AC, 10 A - Telemecanique

In cart

265,40 €

Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable XY2CE, 300 V AC, 10 A

SPECIFICATIONS

Main

Device short name XY2CE

reset By flush push-button

Complementary

compatibility code XY2CE

Product certifications UL category NISD emergency stop devices, CSA, CCC

Product or component type Latching emergency stop rope pull switch

[us] rated supply voltage 230...240 V AC

Connections - terminals Screw clamp terminal, 1 x 0.5...2 x 1.5 mm²

Light block supply Direct

marking CE

Bellow material Nitril

Housing colour Red RAL 3000

contact operation Slow-break

Contacts type and composition 2 NC + 2 NO

safety reliability data B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear

body material Zamak

Local signalling Without pilot light, red, 230 V

cover material Stainless steel

Positive opening With conforming to IEC 60947-5-1

trigger cable anchor point LH side

Shock resistance 50 gn 11 ms conforming to IEC 60068-2-27

Resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A

Safety level Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508

Terminals description iso n°1 (21-22)NC(13-14)NO

Environment

ip degree of protection IP66 conforming to IEC 60529

Range of product Telemecanique Emergency stop rope pull switches XY2C

overvoltage category Class I conforming to IEC 61140, class I conforming to NF C 20-030

standards CSA C22.2 No 14machinery directive 2006/42/ECIEC 60947-5-5UL 508IEC 60947-5-1IEC 60204-1work equipment directive 2009/104/ECISO 13850

vibration resistance 10 gn (f= 10-300 Hz) conforming to IEC 60068-2-6

protective treatment TC
