XY2CE1D290 - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C - Telemecanique - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable XY2CE, 300 V AC, 10 A - Telemecanique - 0
XY2CE1D290 - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C - Telemecanique - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable XY2CE, 300 V AC, 10 A - Telemecanique - 0

XY2CE1D290 – Telemecanique

On order
231,66 € excl. VAT
287,26 € incl. VAT

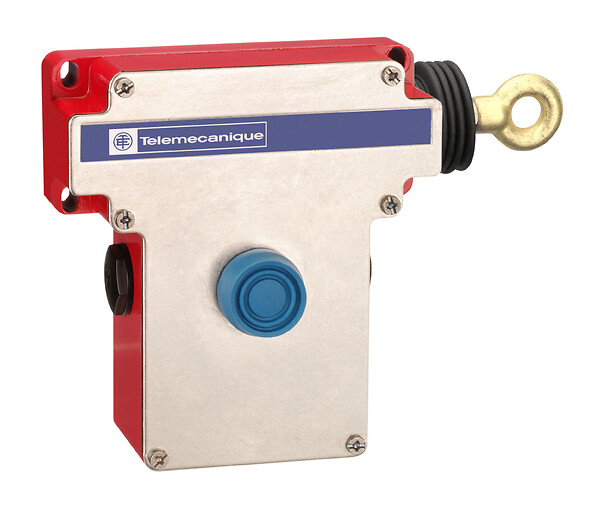

Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable XY2CE, 300 V AC, 10 A - Telemecanique
 In cart
287,26 €
Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable XY2CE, 300 V AC, 10 A
SPECIFICATIONS
Main
Device short name XY2CE
reset By key-release push-button
Complementary
compatibility code XY2CE
Product certifications UL category NISD emergency stop devices, CSA, CCC
Product or component type Latching emergency stop rope pull switch
Connections - terminals Screw clamp terminal, 1 x 0.5...2 x 1.5 mm²
marking CE
Housing colour Red RAL 3000
safety reliability data B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear
body material Zamak
Local signalling Without pilot light
cover material Stainless steel
Positive opening With conforming to IEC 60947-5-1
trigger cable anchor point RH side
Shock resistance 50 gn 11 ms conforming to IEC 60068-2-27
Resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Safety level Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Terminals description iso n°1 (21-22)NC(11-22)NC
Environment
ip degree of protection IP65 conforming to IEC 60529
Range of product Telemecanique Emergency stop rope pull switches XY2C
overvoltage category Class I conforming to IEC 61140, class I conforming to NF C 20-030
standards CSA C22.2 No 14machinery directive 2006/42/ECIEC 60947-5-5UL 508IEC 60947-5-1IEC 60204-1work equipment directive 2009/104/ECISO 13850
vibration resistance 10 gn (f= 10-300 Hz) conforming to IEC 60068-2-6
protective treatment TC
