XUSZAML2PTS – Telemecanique
On order625,50 € excl. VAT
775,62 € incl. VAT

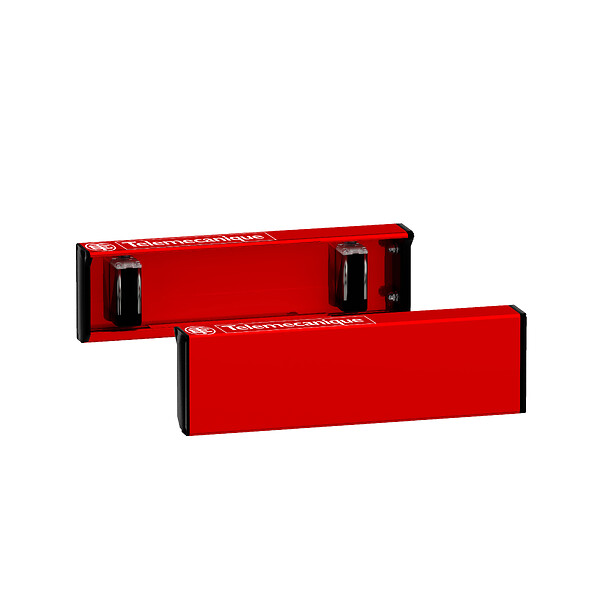

Multi beam prebuilt muting arms, Telemecanique Safety light curtains XUSL, light curtain arm L 2parallel beams high speed conveyor - Telemecanique
Multi beam prebuilt muting arms, Telemecanique Safety light curtains XUSL, light curtain arm L 2parallel beams high speed conveyor
SPECIFICATIONS
Main
Device short name
XUSZAM
product specific application
Conveyor system exit direction, conveyor system high speed
Specific application of photoelectric detector
Detection of opaque parts
detection system
Through beam
Complementary
product compatibility
XUSL4M
Kit composition
transmitter + receiver, quick start guide
Product certifications
CE
response time
< 100 ms
Product or component type
Multi-beam prebuilt muting arms
[us] rated supply voltage
24 V DC +/- 20 %
Current consumption
42 mA
Output type
2 discrete solid-state PNP (NO)
Housing colour
Red RAL 3000
safety reliability data
PFHd = 2.73E-7 1/h
output voltage
24 V
Local signalling
2 yellow LED receiver
switching capacity in ma
100 mA
output circuit type
DC
Sensing range
0...10 cm space between package, > 32 cm space between package
Voltage drop
<0.5 V
Shock resistance
10 gn for 16 ms conforming to IEC 61496-1
Supply
Via connector
Environment
Directives
89/336/EEC - electromagnetic compatibility98/37/EEC - machinery
Emission
IR LED 940 nm
ip degree of protection
IP65
Range of product
Telemecanique Safety light curtains XUSL
vibration resistance
0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1
