XURC3PPML2 – Telemecanique
On order579,73 € excl. VAT
718,86 € incl. VAT

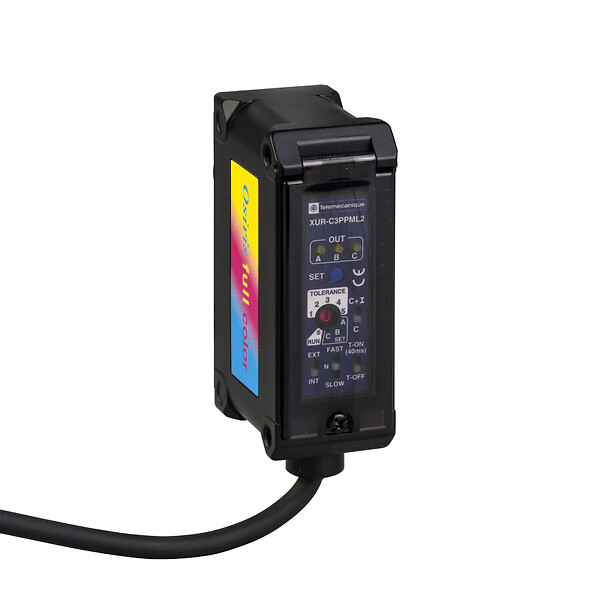

Photoelectric sensors XU, XUR, diffuse, color, Sn 60 mm, 12...24 VDC, cable 2 m - Telemecanique
Photoelectric sensors XU, XUR, diffuse, color, Sn 60 mm, 12...24 VDC, cable 2 m.
This product is compatible with XUZC50. End of commercialisation. XURC3PPML2 is replaced by the following product:: XUKCBLAYM12
SPECIFICATIONS
Main
product specific application
Colour
Series name
Application packaging
sensor name
XUR
detection system
Diffuse
electronic sensor type
Photo-electric sensor
Complementary
cable composition
7 x 0.2 mm²
[us] rated supply voltage
12...24 V DC
Current consumption
<= 150 mA no-load
maximum voltage drop
<1.5 V (closed state)
Output type
Solid state
Discrete output function
1 NO
Enclosure material
Aluminium
lens material
Glass
Material
Metal
Discrete output type
PNP
switching capacity in ma
<= 100 mA (overload and short-circuit protection)
cover material
Polyacrylate
Time delay range
40 ms on failing edge programmable by switch delay
electrical connection
Cable
Shock resistance
50 gn for 5 shocks on each axis conforming to IEC 60068-2-27
Setting-up
Operating modetolerance levelsensitivity adjustment with teach mode
Sensor design
Compact
Status led
-
Wiring technique
3-wire
Switching time
-
Type of output signal
Discrete
Supply circuit type
DC
Environment
Emission
-
ip degree of protection
IP67 conforming to IEC 60529
Range of product
Telemecanique Photoelectric sensors XU
vibration resistance
7 gn, amplitude = +/- 0.75 mm (f = 10-55 Hz)on the 3 axes during 2 hours conforming to IEC 60068-2-6
