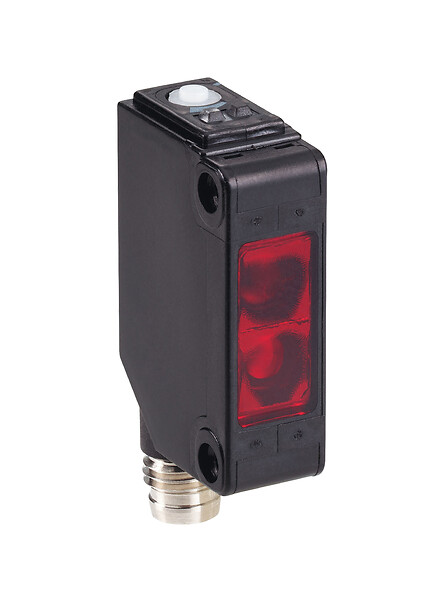

XUN5ANANM12 – Telemecanique
On order157,66 € excl. VAT
195,50 € incl. VAT
Photoelectric sensors XU, 24 VDC, NPN, 1 NO - Telemecanique
Photoelectric sensors XU, 24 VDC, NPN, 1 NO.
End of commercialisation.
SPECIFICATIONS
Main
product specific application
Not applicable
Series name
General purpose multimode
sensor name
XUB
detection system
Multimode
electronic sensor type
Photo-electric sensor
Complementary
Add on output
With alarm output, <= 50 mA with overload and short-circuit protection
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
<= 35 mA no-load
maximum voltage drop
<1.5 V (closed state)
Output type
Solid state
Discrete output function
1 NO or 1 NC programmable
Enclosure material
PBT
lens material
PMMA
Material
Plastic
switching frequency
250 Hz
Discrete output type
NPN
switching capacity in ma
<= 100 mA (overload and short-circuit protection)
electrical connection
1 male connector M12, 4 pins
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Setting-up
Self teaching
Sensor design
American form
Status led
1 LED (yellow) for output state
Wiring technique
3-wire
Type of output signal
Discrete
Supply circuit type
DC
Environment
Emission
Infrared diffuse
ip degree of protection
IP65 double insulation conforming to IEC 60529
Range of product
Telemecanique Photoelectric sensors XU
vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
