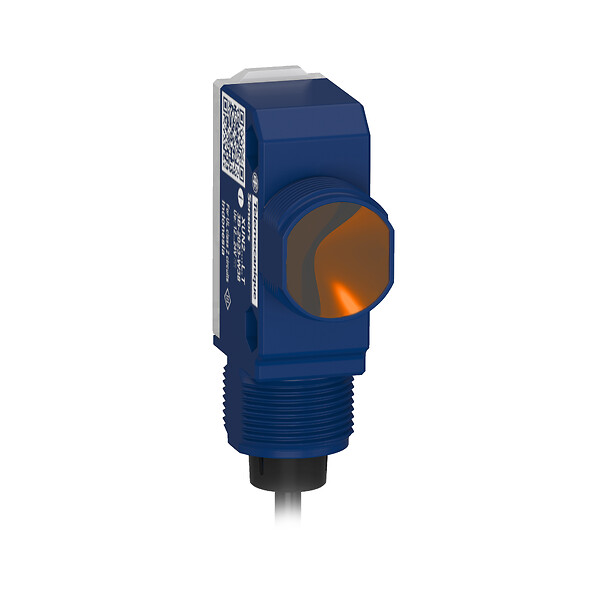

XUN2AKXNL2T – Telemecanique
On order34,80 € excl. VAT
43,15 € incl. VAT
Photoelectric sensors XU, Photo electric sensor, Hybrid, Thru-beam, Transmitter, Smax 30m, Cable 2m - Telemecanique
Photoelectric sensors XU, Photo electric sensor, Hybrid, Thru-beam, Transmitter, Smax 30m, Cable 2m
SPECIFICATIONS
Main
Series name
General purpose single mode
sensor name
XUN
detection system
Thru beam
electronic sensor type
Photo-electric sensor
Complementary
[sn] nominal sensing distance
20-20 m thru beam
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
< 20 mA no load
maximum voltage drop
<2 V (closed state)no-load
Output type
Discrete
Discrete output function
1 NO or 1 NC programmable
Enclosure material
PC/PBT
lens material
PMMA
Material
Plastic
switching frequency
1000 Hz
Discrete output type
PNP/NPN autodetectIOLINK
switching capacity in ma
<= 100 mA (overload and short-circuit protection)
electrical connection
Cable
Shock resistance
30 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27
Setting-up
Sensitivity by potentiometer
Sensor design
Compact 32 x 52
Status led
1 LED (green) for supply on
Wiring technique
2-wire
Type of output signal
Discrete
Supply circuit type
DC
Environment
Emission
Red LED thru beam
ip degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Range of product
Telemecanique Photoelectric sensors XU
vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz)for every axis conforming to IEC 60068-2-6
