XUMRPGAYM8 – Telemecanique
On order114,61 € excl. VAT
142,11 € incl. VAT

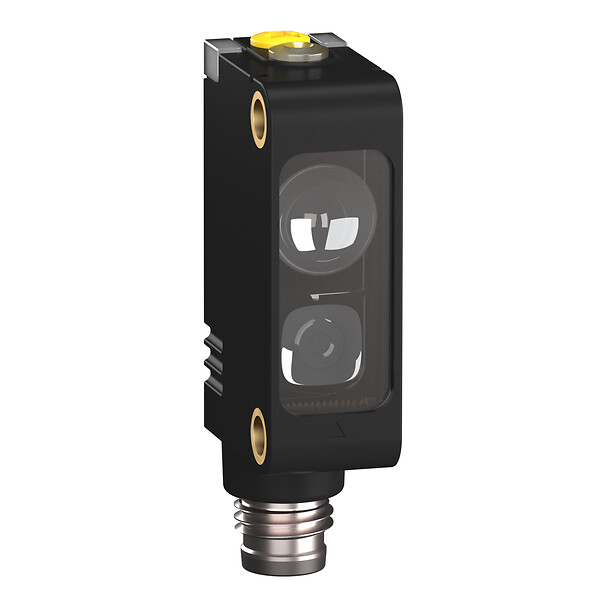

PHOTO SENSOR MINIATURE CONTRAST PLASTIC SN 12MM IOLINK NO NC M8 24V - Telemecanique
PHOTO SENSOR MINIATURE CONTRAST PLASTIC SN 12MM IOLINK NO NC M8 24V
SPECIFICATIONS
Main
design
Miniature
product specific application
Contrast mark reader
Specific application of photoelectric detector
Marks and contrasts sensing for packaging
Series name
Application packaging
sensor name
XUM
detection system
Diffuse
electronic sensor type
Photo-electric sensor
Complementary
Add on output
, 40 mA
Output type
Discrete
Discrete output function
1 NO or 1 NC programmable
Enclosure material
Glass filled technopolymer
lens material
PMMA
switching frequency
30kHz
Discrete output type
PNP
connector type
M8
electrical connection
M8, 4 pins
Sensing range
9...15 mm
Voltage drop
<2V
Shock resistance
30 gn (duration = 11ms) for 6 shocks on each axis conforming to EN/IEC 60068-2-27
Setting-up
Sensitivity by IO-Linksensitive adjustment with teach mode
Sensor design
Miniature
Status led
1power LED color: green
Type of colour processing
RGB
Supply circuit type
DC
Environment
Emission
Red LED diffuse 633nm conforming to EN/IEC 62471 Exempt Risk Group (RG0)
ip degree of protection
IP65
vibration resistance
+/-0.5 mm, amplitude = +/- 0.5 mm (f= 10-55Hz) for every axis conforming to EN 60068-2-6
