XUMRAWAYP015 – Telemecanique
On order157,06 € excl. VAT
194,75 € incl. VAT

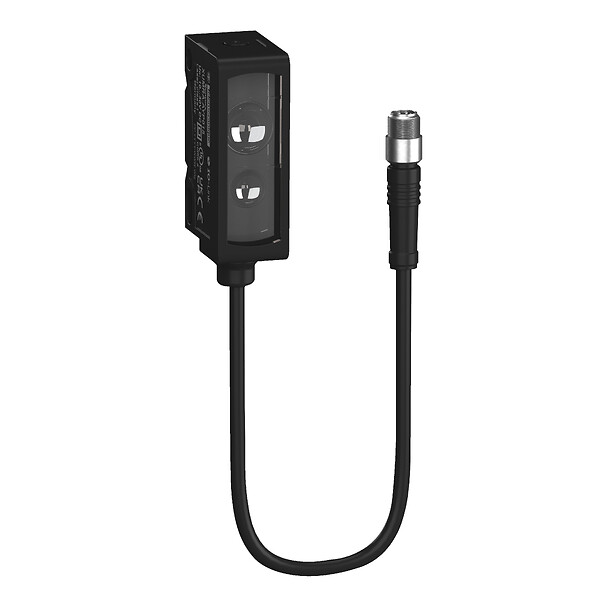

Photoelectric sensors XUMR, Contrast Mark reader, White, Sn 12mm, IO-Link, Pigtail M12 15cm - Telemecanique
Photoelectric sensors XUMR, Contrast Mark reader, White, Sn 12mm, IO-Link, Pigtail M12 15cm
SPECIFICATIONS
Main
product specific application
Contrast mark reader
Series name
Application packaging
sensor name
XUM
detection system
Diffuse
electronic sensor type
Photo-electric sensor
Complementary
Add on output
Without, 100 mA
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
<= 25 mA no-load
Output type
Solid state
Discrete output function
1 NO or 1 NC programmable
Enclosure material
ABS
lens material
PMMA
Material
Plastic
Discrete output type
PNP/NPN autodetectIOLINK
switching capacity in ma
<= 100 mA (overload and short-circuit protection)
electrical connection
1 pre-cabled male connector M12, 4 pins
Sensing range
9...15 mm
Setting-up
Sensitivity by IO-Linksensitivity adjustment with teach mode
Sensor design
Miniature
Status led
1 LED (green) for power ON, 1 LED (orange) for output state
Type of output signal
Discrete
Supply circuit type
DC
Environment
Emission
Red, blue and green diffuse
ip degree of protection
IP67 conforming to IEC 60529, IP69K conforming to DIN 40050-9
Range of product
Telemecanique Photoelectric sensors XU
