XUM9ALAYP015 – Telemecanique
On order157,26 € excl. VAT
195,01 € incl. VAT

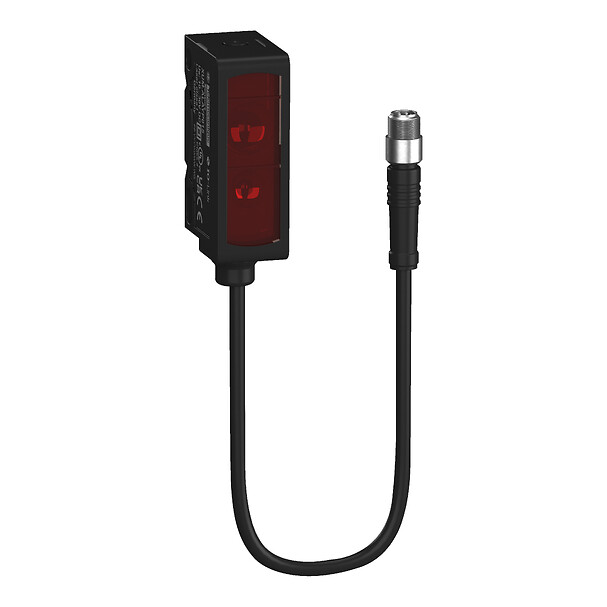

Photoelectric sensors XUM9, Reflex, Laser, Sn 13000mm, IO-Link, Pigtail M12 15cm - Telemecanique
Photoelectric sensors XUM9, Reflex, Laser, Sn 13000mm, IO-Link, Pigtail M12 15cm
SPECIFICATIONS
Main
product specific application
Reflex laser
Series name
Application packaging
sensor name
XUM
detection system
Polarised reflex
electronic sensor type
Photo-electric sensor
Complementary
Add on output
Without, 100 mA
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
<= 30 mA no-load
Output type
Solid state
Discrete output function
1 NO or 1 NC programmable
Enclosure material
ABS
lens material
PMMA
Material
Plastic
Discrete output type
PNP/NPN autodetectIOLINK
switching capacity in ma
<= 100 mA (overload and short-circuit protection)
electrical connection
1 male connector M12, 4 pins
Setting-up
Sensitivity adjustment with teach mode
Sensor design
Miniature
Status led
1 LED (green) for power ON
Type of output signal
Discrete
Supply circuit type
DC
Environment
Emission
Red laser reflex
ip degree of protection
IP67 conforming to IEC 60529
Range of product
Telemecanique Photoelectric sensors XU
