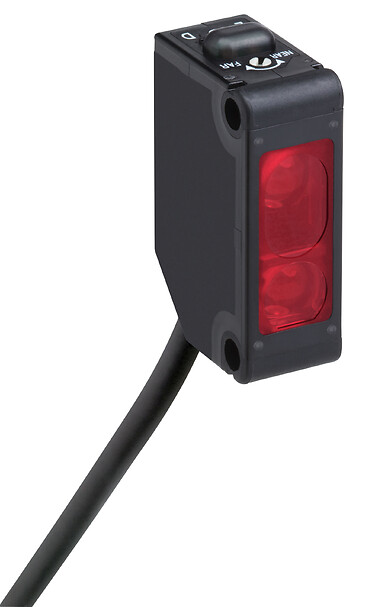

XUM8APCNL5 – Telemecanique
On order130,08 € excl. VAT
161,30 € incl. VAT
Photoelectric sensors XU, XUM, BGS, Sn 0.3 m, 12...24 VDC, cable 5 m - Telemecanique
Photoelectric sensors XU, XUM, BGS, Sn 0.3 m, 12...24 VDC, cable 5 m.
End of commercialisation. XUM8APCNL5 is replaced by the following product:: XUM8APXBL2
SPECIFICATIONS
Main
Series name
General purpose single mode
sensor name
XUM
detection system
Diffuse with background suppression
electronic sensor type
Photo-electric sensor
Complementary
[sn] nominal sensing distance
0.3-0.3 m diffuse with background suppression
[us] rated supply voltage
12...24 V DC
Current consumption
35 mA no-load
maximum voltage drop
<1.5 V (closed state)
Output type
Solid state
Discrete output function
1 NO or 1 NC programmable
Enclosure material
PBT
lens material
PC
Material
Plastic
switching frequency
500 Hz
Discrete output type
PNP
switching capacity in ma
<= 100 mA (overload and short-circuit protection)
electrical connection
Cable
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Setting-up
Without sensitivity adjustment
Sensor design
Miniature
Status led
1 LED (yellow) for output state, 1 LED (red) for instability
Wiring technique
3-wire
Type of output signal
Discrete
Supply circuit type
DC
Environment
Emission
Red diffuse with background suppression
ip degree of protection
IP67 double insulation conforming to IEC 60529, IP65 double insulation
Range of product
Telemecanique Photoelectric sensors XU
vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
