XUM6ANXBL2 – Telemecanique
On order34,86 € excl. VAT
43,23 € incl. VAT

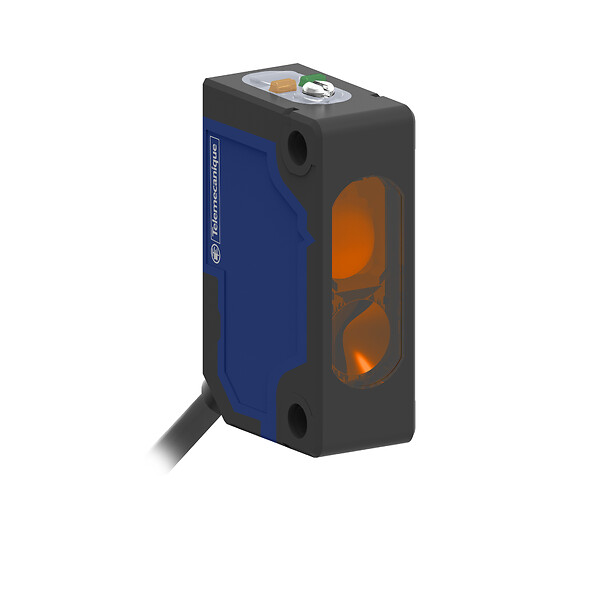

Photoelectric sensors XU, miniature, diffuse medium, Smax=1.1 m, NPN, cable 2 m - Telemecanique
Photoelectric sensors XU, miniature, diffuse medium, Smax=1.1 m, NPN, cable 2 m.
This product is compatible with XUZA50, XUZASM02, XUZASM03, XUZASM04, XUZASM05
SPECIFICATIONS
Main
Series name
General purpose single mode
sensor name
XUM
detection system
Diffuse
electronic sensor type
Photo-electric sensor
Complementary
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
20 mA no-load
maximum voltage drop
<2 V
Output type
Solid state
Discrete output function
1 NO or 1 NC programmable
Enclosure material
PBT
lens material
PMMA
Material
Plastic
switching frequency
1000 Hz
Discrete output type
NPN
switching capacity in ma
<= 100 mA with overload and short-circuit protection
electrical connection
Cable
Shock resistance
100 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27
Setting-up
Sensitivity by potentiometer
Sensor design
Miniature
Status led
-
Wiring technique
3-wire
Type of output signal
Discrete
Supply circuit type
DC
Environment
Emission
-
ip degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Range of product
Telemecanique Photoelectric sensors XU
vibration resistance
9 gn, amplitude = +/- 1.5 mm (f = 10-500 Hz)for every axis conforming to IEC 60068-2-6
