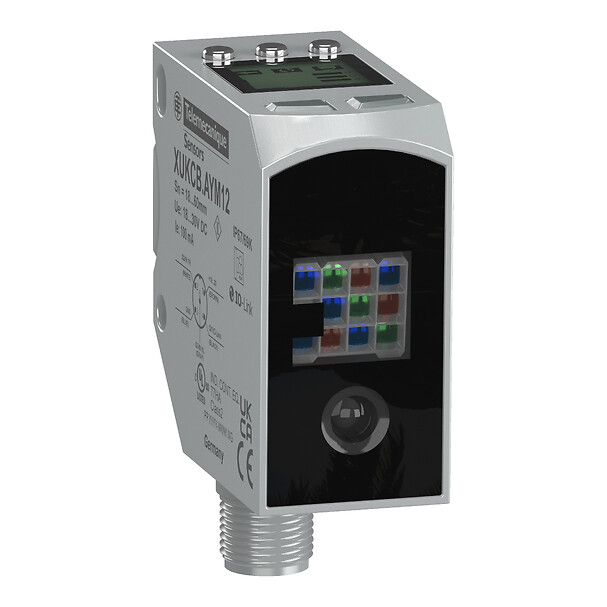

XUKCBSAYM12 – Telemecanique
On order586,03 € excl. VAT
726,68 € incl. VAT
Photoelectric sensors XUKC, Color, Short, Sn 60mm, IO-Link, Connector M12 - Telemecanique
Photoelectric sensors XUKC, Color, Short, Sn 60mm, IO-Link, Connector M12
SPECIFICATIONS
Main
product specific application
Color detection
Series name
Application packaging
sensor name
XUK
detection system
Diffuse
electronic sensor type
Photo-electric sensor
Complementary
Add on output
Without, 100 mA
[us] rated supply voltage
24 V DC with reverse polarity protection
Current consumption
<= 60 mA no-load
Output type
Solid state
Discrete output function
1 NO or 1 NC programmable
Enclosure material
Die cast zinc alloy
lens material
PMMA
Material
Metal
Discrete output type
PNP/NPN autodetectIOLINK
switching capacity in ma
<= 100 mA (overload and short-circuit protection)
electrical connection
1 male connector M12 adjustable through 90°, 5 pins
Sensing range
18...60 mm
Setting-up
Sensitivity by screensensitivity by IO-Linksensitivity adjustment with teach mode
Sensor design
Compact 50 x 50
Status led
1 LED (green/yellow) for power ON/status indicator
Type of output signal
Discrete
Supply circuit type
DC
Environment
Emission
White LED diffuse
ip degree of protection
IP67 conforming to IEC 60529, IP69K conforming to DIN 40050-9
Range of product
Telemecanique Photoelectric sensors XU
