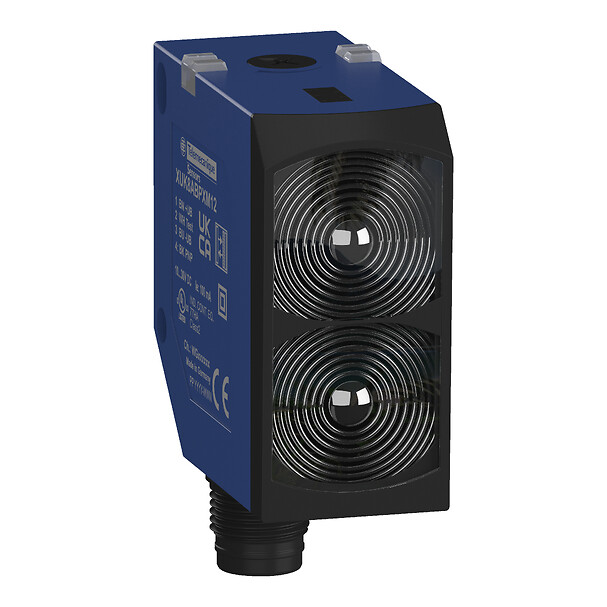

Photoelectric sensors XUK8, BGS, Blue light, Sn 1200mm, PNP, Connector M12 - Telemecanique
Photoelectric sensors XUK8, BGS, Blue light, Sn 1200mm, PNP, Connector M12
SPECIFICATIONS
Main
product specific application
Background suppression blue light
Series name
Application packaging
sensor name
XUK
detection system
Diffuse with background suppression
electronic sensor type
Photo-electric sensor
Complementary
[sn] nominal sensing distance
1200-1200 mm diffuse with background suppression
Add on output
Without, 100 mA
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
<= 30 mA no-load
Output type
Solid state
Discrete output function
1 NO or 1 NC programmable
Enclosure material
ABS/PC
lens material
PMMA
Material
Plastic
Discrete output type
PNP
switching capacity in ma
<= 100 mA (overload and short-circuit protection)
electrical connection
1 male connector M12, 4 pins
Setting-up
Sensitivity by potentiometer
Sensor design
Miniature
Status led
1 LED (green) for power ON, 1 LED (orange) for output state
Type of output signal
Discrete
Supply circuit type
DC
Environment
Emission
Blue light diffuse with background suppression
ip degree of protection
IP67 conforming to IEC 60529, IP69K conforming to DIN 40050-9
Range of product
Telemecanique Photoelectric sensors XU
