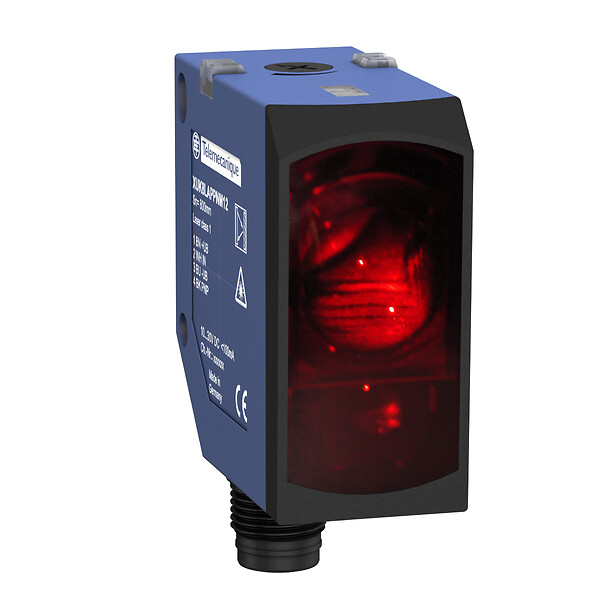

Photoelectric sensors XU, XUK, thru beam receiver, Sn 14 m, 10...30 VDC, M12 - Telemecanique
Photoelectric sensors XU, XUK, thru beam receiver, Sn 14 m, 10...30 VDC, M12
SPECIFICATIONS
Main
Series name
General purpose single mode
sensor name
XUK
detection system
Thru beam
electronic sensor type
Photo-electric sensor
Complementary
[sn] nominal sensing distance
12-12 m thru beam need transmitter XUK2AKEMM12T
Add on output
Without
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
<= 30 mA no-load
Output type
Solid state
Discrete output function
1 NO or 1 NC programmable
Enclosure material
ABS/PC
lens material
PMMA
Material
Plastic
Discrete output type
PNP
switching capacity in ma
<= 100 mA (overload and short-circuit protection)
electrical connection
1 male connector M12, 4 pins
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60947-5-2
Setting-up
Using teach button or remote teaching
Sensor design
Compact 50 x 50
Status led
1 LED (green) for supply on, 1 LED (yellow) for output state, 1 LED (red) for alignment assistance
Wiring technique
4-wire
Type of output signal
Discrete
Supply circuit type
DC
Environment
Emission
Red thru beam
ip degree of protection
IP67 conforming to IEC 60529, IP69K conforming to DIN 40050
Range of product
Telemecanique Photoelectric sensors XU
vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
