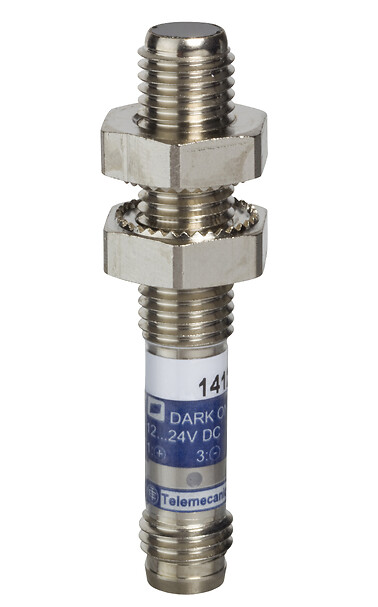

XUAH0515S – Telemecanique
On order120,19 € excl. VAT
149,04 € incl. VAT
Photoelectric sensors XU, XUA, diffuse, Sn 0.05 m, 12...24 VDC, M8 - Telemecanique
Photoelectric sensors XU, XUA, diffuse, Sn 0.05 m, 12...24 VDC, M8.
This product is compatible with XSAZ108, XSZB108
SPECIFICATIONS
Main
product specific application
Not applicable
Series name
Application assembly
sensor name
XUA
detection system
Diffuse
electronic sensor type
Photo-electric sensor
Complementary
[sn] nominal sensing distance
0.05-0.05 m diffuse
cable composition
3 x 0.14 mm²
Add on output
Without
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
<= 25 mA no-load
maximum voltage drop
<1 V (closed state)
Output type
Solid state
Discrete output function
1 NO
Enclosure material
Nickel plated brass
lens material
Polyamide
Material
Metal
Discrete output type
PNP
switching capacity in ma
<= 100 mA (overload and short-circuit protection)
electrical connection
1 male connector M8, 3 pins
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Setting-up
Without sensitivity adjustment
Sensor design
Cylindrical M8
Status led
1 LED (yellow) for output state
Wiring technique
3-wire
Type of output signal
Discrete
Supply circuit type
DC
Environment
Emission
Infrared diffuse
ip degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Range of product
Telemecanique Photoelectric sensors XU
vibration resistance
7 gn, amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
