XU9N18PP341D – Telemecanique
On order91,39 € excl. VAT
113,33 € incl. VAT

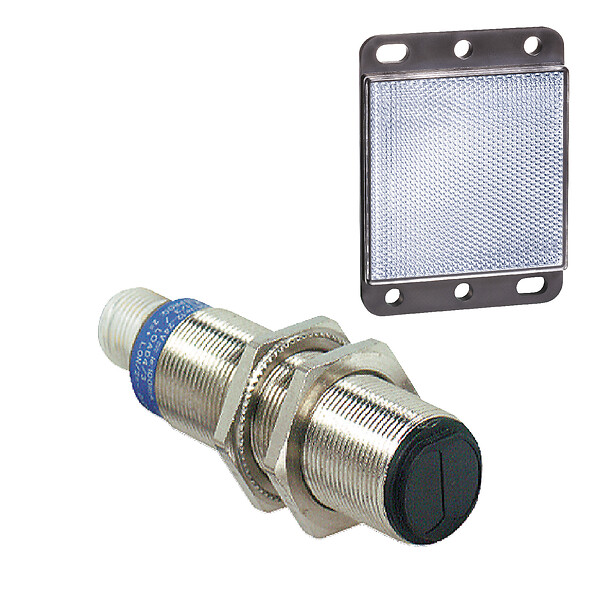

Photoelectric sensors XU, XU9, polarised, Sn 2 m, 12...24 VDC, M12 - Telemecanique
Photoelectric sensors XU, XU9, polarised, Sn 2 m, 12...24 VDC, M12.
This product is compatible with XSZE218, XSZE318, XUZA118, XUZA218
SPECIFICATIONS
Main
product specific application
Not applicable
Series name
Application food and beverage
sensor name
XU9
detection system
Polarised reflex
electronic sensor type
Photo-electric sensor
Complementary
cable composition
4 x 0.34 mm²
Kit composition
Sensorreflector XUZC50
Add on input
Programmation
Product certifications
CSACEUL
Add on output
Without
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
<= 30 mA no-load
maximum voltage drop
<1.5 V (closed state)
Output type
Solid state
Discrete output function
1 NO or 1 NC programmable
Enclosure material
Stainless steel : 304 CU
lens material
PMMA
Material
Stainless steel
switching frequency
500 Hz
Discrete output type
PNP
switching capacity in ma
<= 100 mA (overload and short-circuit protection)
electrical connection
1 male connector M12, 4 pins
Line of sight type
Axial
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Setting-up
Without sensitivity adjustment
Sensor design
Cylindrical M18
Status led
1 LED (green) for supply on, 1 LED (yellow) for output state
Wiring technique
3-wire
Type of output signal
Discrete
Supply circuit type
DC
Wire insulation material
PvR
Environment
Emission
Red polarised reflex
ip degree of protection
IP67 conforming to IEC 60529
Range of product
Telemecanique Photoelectric sensors XU
vibration resistance
25 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
