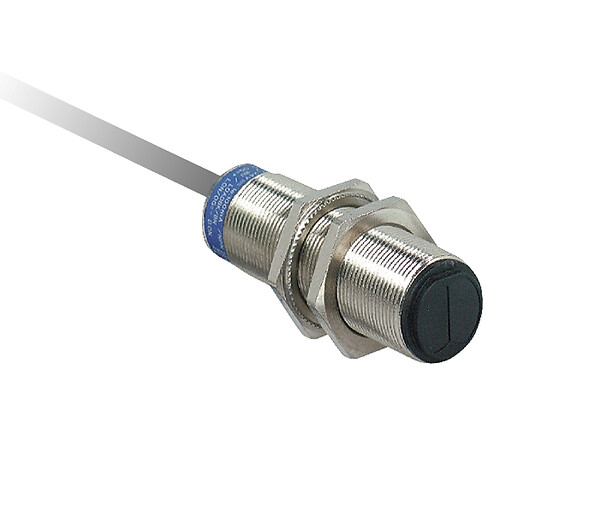

XU5N18PP341 – Telemecanique
On order90,83 € excl. VAT
112,63 € incl. VAT
Photoelectric sensors XU, XU5, diffuse, Sn 0.10 m, 12...24 VDC, cable 2 m - Telemecanique
Photoelectric sensors XU, XU5, diffuse, Sn 0.10 m, 12...24 VDC, cable 2 m.
This product is compatible with XSZE218, XSZE318, XUZA118, XUZA218
SPECIFICATIONS
Main
product specific application
Not applicable
Series name
Application food and beverage
sensor name
XU5
detection system
Diffuse
electronic sensor type
Photo-electric sensor
Complementary
cable composition
4 x 0.34 mm²
Add on output
Without
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
<= 30 mA no-load
maximum voltage drop
<1.5 V (closed state)
Output type
Solid state
Discrete output function
1 NO or 1 NC programmable
Enclosure material
Stainless steel : 304 CU
lens material
PMMA
Material
Stainless steel
Discrete output type
PNP
switching capacity in ma
<= 100 mA (overload and short-circuit protection)
electrical connection
Cable
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Setting-up
Without sensitivity adjustment
Sensor design
Cylindrical M18
Status led
1 LED (green) for supply on, 1 LED (yellow) for output state
Wiring technique
3-wire
Type of output signal
Discrete
Supply circuit type
DC
Environment
Emission
Infrared diffuse
ip degree of protection
IP67 conforming to IEC 60529
Range of product
Telemecanique Photoelectric sensors XU
vibration resistance
25 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
