XU2M18MA230WR – Telemecanique
On order98,51 € excl. VAT
122,15 € incl. VAT

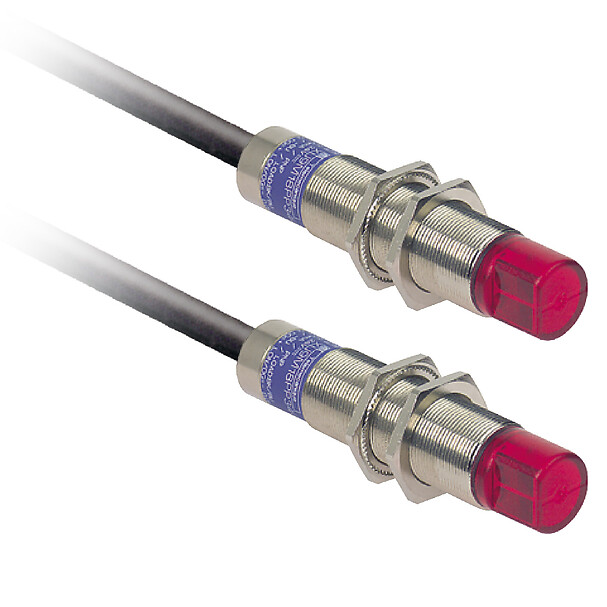

Photoelectric sensors XU, XU2, receiver, 90°, Sn 15 m, 24...240VAC/DC, cable 2 m - Telemecanique
Photoelectric sensors XU, XU2, receiver, 90°, Sn 15 m, 24...240VAC/DC, cable 2 m.
This product is compatible with XUZ2001, XUZ2003, XUZA118, XUZA218, XUZB2003
SPECIFICATIONS
Main
Series name
General purpose single mode
sensor name
XU2
detection system
Thru beam
electronic sensor type
Photo-electric sensor receiver
Complementary
[sn] nominal sensing distance
15-15 m thru beam need a transmitter
Add on output
Without
[us] rated supply voltage
24...240 V AC/DC
maximum voltage drop
<6 V (closed state)
Output type
Solid state
Discrete output function
1 NO
Enclosure material
Nickel plated brass
lens material
PMMA
Material
Metal
switching capacity in ma
10...200 mA (to be used with 0.4 A quick-blow fuse in series with the load)
electrical connection
Cable
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Setting-up
Sensitivity adjustment
Sensor design
Cylindrical M18
Status led
-
Wiring technique
2-wire
Type of output signal
Discrete
Supply circuit type
AC/DC
Environment
Emission
-
ip degree of protection
IP67 double insulation conforming to IEC 60529
Range of product
Telemecanique Photoelectric sensors XU
vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
