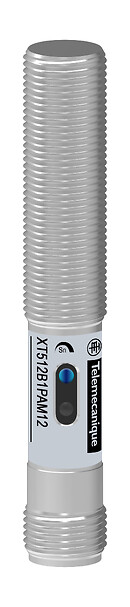

XT512B1PAM12 – Telemecanique
On order50,66 € excl. VAT
62,81 € incl. VAT
Capacitive proximity sensors XT, cylindrical M12, brass, 3-wire, Sn 2mm, 24 V DC, connector M12, 1 NO - Telemecanique
Capacitive proximity sensors XT, cylindrical M12, brass, 3-wire, Sn 2mm, 24 V DC, connector M12, 1 NO.
This product is compatible with XUZE04, XXZ12
SPECIFICATIONS
Main
Body type
Fixed
product specific application
Detection of insulated or conductive materials
sensor name
XT5
Complementary
electrical insulation class
Class III conforming to IEC 61140
iso thread
M12 x 1
Product certifications
cULus
Product or component type
Sensor
[us] rated supply voltage
24 V DC with reverse polarity protection
Current consumption
< 15 mA
detection face
Frontal
marking
CE
Discrete output function
1 NO
Enclosure material
Nickel copper alloy
Detector flush mounting acceptance
Flush mountable
Differential travel
< 0.2 x Sr
Material
Nickel copper alloy
switching frequency
<= 40 Hz
Discrete output type
PNP
repeat accuracy
< 0.1 x Sr
Front material
PBT
electrical connection
Male connector M12, 4 pins
output circuit type
DC
Sensor type
Capacitive proximity sensor
Voltage drop
<2.5 V (closed)
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Setting-up
Sensitivity by potentiometer
Sensor design
Cylindrical M12
Status led
Output state indication: 1 LED (yellow)
Wiring technique
3-wire
Size
75 mm
Type of output signal
Discrete
Protection type
Short-circuit protection
Environment
ip degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Range of product
Telemecanique Capacitive proximity sensors XT
standards
UL 61010-1IEC 60947-5-2
vibration resistance
10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
