XT230A2MDB – Telemecanique
On order71,86 € excl. VAT
89,10 € incl. VAT

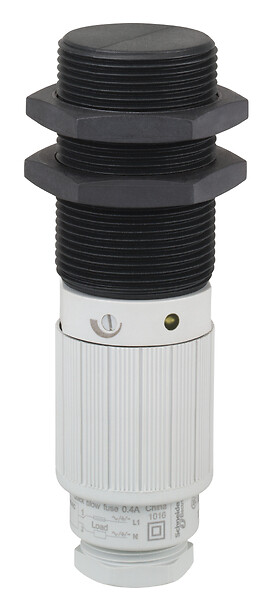

Capacitive proximity sensors XT, cylindrical M30, plastic, Sn 15 mm, 24...240 V AC - Telemecanique
Capacitive proximity sensors XT, cylindrical M30, plastic, Sn 15 mm, 24...240 V AC.
This product is compatible with XTAZ30, XXZ30
SPECIFICATIONS
Main
Body type
Fixed
product specific application
Animal feedingdetection of insulated or conductive materials
sensor name
XT2
Complementary
electrical insulation class
Class I
iso thread
M30 x 1.5
Product certifications
cULus
[us] rated supply voltage
24...240 V AC 50...60 Hz
Current consumption
< 3 mA
cable entry
-
detection face
Frontal
marking
CE
Discrete output function
1 NO or 1 NC programmable
Enclosure material
Plastic
Detector flush mounting acceptance
Non flush mountable
Differential travel
< 1...15 % Sr
Material
Plastic
switching frequency
<= 40 Hz
repeat accuracy
< 5 % Sr
electrical connection
Screw clamp terminal
output circuit type
ACDC
Sensor type
Capacitive proximity sensor
Voltage drop
<2 V (closed)
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Setting-up
Sensitivity by potentiometer
Sensor design
Cylindrical M30
Status led
Output state indication: 1 LED (yellow)
Wiring technique
2-wire
Size
100 mm
Type of output signal
Discrete
Environment
ip degree of protection
IP65 conforming to IEC 60529
standards
UL 61010-1IEC 60947-5-2
vibration resistance
10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
