XSDA500519 – Telemecanique
On order211,60 € excl. VAT
262,38 € incl. VAT

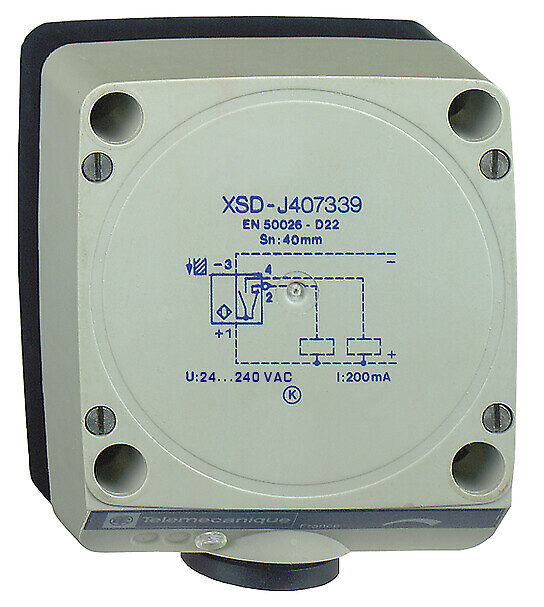

Inductive proximity sensors XS, inductive sensor XSD 80x80x40, plastic, Sn40mm, 24...240 VAC, terminals - Telemecanique
Inductive proximity sensors XS, inductive sensor XSD 80x80x40, plastic, Sn40mm, 24...240 VAC, terminals
SPECIFICATIONS
Main
Body type
Fixed
Series name
General purpose
sensor name
XSD
Complementary
Product certifications
CCC
[us] rated supply voltage
12...240 V AC
cable entry
1 entry tapped for Pg 13.5 cable gland
detection face
5 positions turret head
Discrete output function
1 NO or 1 NC programmable
Enclosure material
Plastic
Detector flush mounting acceptance
Non flush mountable
Material
Plastic
switching frequency
<= 10 Hz
Front material
Plastic
electrical connection
Screw-clamp terminals
output circuit type
AC
Sensing range
> 40...60 mm
Sensor type
Inductive proximity sensor
Sensor design
Form 80 x 80 x 40
Wiring technique
2-wire
Size
40 mm
Type of output signal
Discrete
Environment
ip degree of protection
IP67
Range of product
Telemecanique Inductive proximity sensors XS
