XS930S1PAM12 – Telemecanique
On order112,42 € excl. VAT
139,40 € incl. VAT

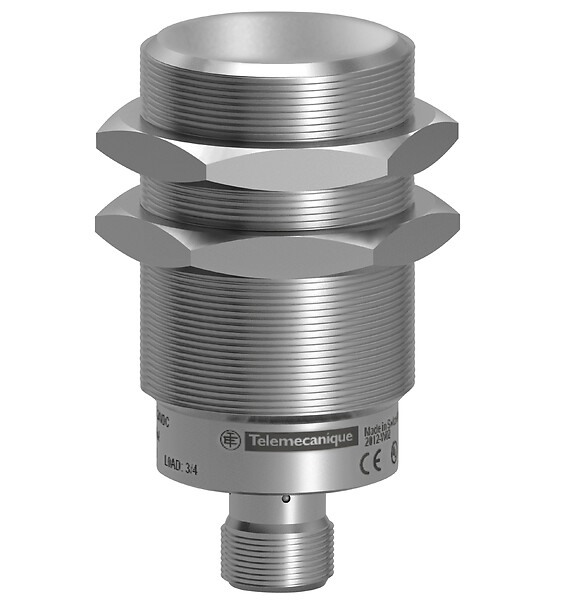

Inductive proximity sensors XS, inductive sensor XS9 M30, L64mm, full SS 316L, Sn20 mm, 12...24 VDC, M12 - Telemecanique
Inductive proximity sensors XS, inductive sensor XS9 M30, L64mm, full SS 316L, Sn20 mm, 12...24 VDC, M12.
This product is compatible with XSZB130, XSZBS30, XZCP1141L5, XZCP1241L5
SPECIFICATIONS
Main
Body type
Single piece body
Series name
Application
sensor name
XS9
Complementary
Product certifications
cULusEcolab
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
<= 10 mA no-load
detection face
Frontal
marking
CE
Device application
Food and beverage
Discrete output function
1 NO
Enclosure material
Stainless steel 316L
Detector flush mounting acceptance
Flush mountable
Differential travel
1...15 % of Sr
Material
Stainless steel 316L
switching frequency
<= 100 Hz
Discrete output type
PNP
switching capacity in ma
<= 200 mA with overload and short-circuit protection
repeat accuracy
<= 5 % of Sr
Front material
Stainless steel 316L
thread type
M30 x 1.5
electrical connection
Male connector M12, 4 pins
output circuit type
DC
Sensing range
> 15...40 mm
Sensor type
Inductive proximity sensor
Voltage drop
<2 V (closed)
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Sensor design
Cylindrical M30
Status led
Output state: 1 LED (yellow)
Wiring technique
3-wire
Size
64 mm
Type of output signal
Discrete
Environment
ip degree of protection
IP69K conforming to DIN 40050, IP68 conforming to IEC 60529
Range of product
Telemecanique Inductive proximity sensors XS
vibration resistance
25 gn amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
