XS918R4PAM12 – Telemecanique
On order73,38 € excl. VAT
90,99 € incl. VAT

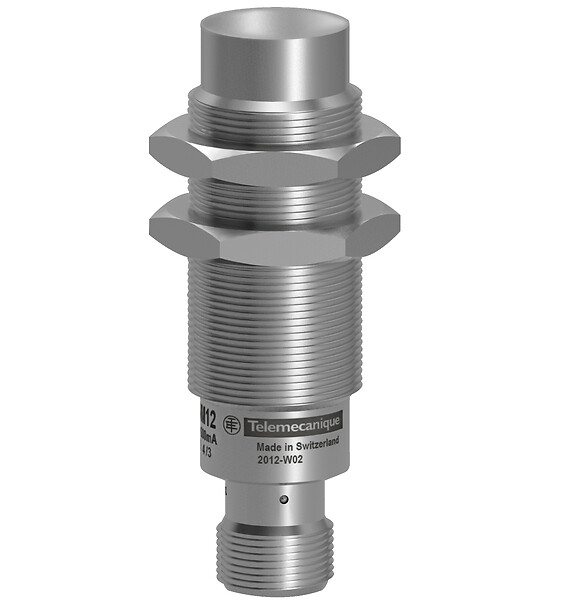

Inductive proximity sensors XS, inductive sensor XS9 M18, L64mm, full SS 303, Sn20mm, 12...24 VDC, M12 - Telemecanique
Inductive proximity sensors XS, inductive sensor XS9 M18, L64mm, full SS 303, Sn20mm, 12...24 VDC, M12.
This product is compatible with XSZB118, XUZA118, XZCP1141L5, XZCP1241L5
SPECIFICATIONS
Main
Body type
Single piece body
Series name
Application
sensor name
XS9
Complementary
Product certifications
cULus
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
<= 10 mA no-load
detection face
Frontal
marking
CE
Device application
Harsh environment application
Discrete output function
1 NO
Enclosure material
Stainless steel 303
Detector flush mounting acceptance
Non flush mountable
Differential travel
1...15 % of Sr
Material
Stainless steel 303
switching frequency
<= 200 Hz
Discrete output type
PNP
switching capacity in ma
<= 200 mA with overload and short-circuit protection
repeat accuracy
<= 5 % of Sr
Front material
Stainless steel 303
thread type
M18 x 1
electrical connection
Male connector M12, 4 pins
output circuit type
DC
Sensing range
> 15...40 mm
Sensor type
Inductive proximity sensor
Voltage drop
<2 V (closed)
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Sensor design
Cylindrical M18
Status led
Output state: 1 LED (yellow)
Wiring technique
3-wire
Size
64 mm
Type of output signal
Discrete
Environment
ip degree of protection
IP69K conforming to DIN 40050, IP68 conforming to IEC 60529
Range of product
Telemecanique Inductive proximity sensors XS
vibration resistance
25 gn amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
