XS8S174NAL2C – Telemecanique
On order14,85 € excl. VAT
18,41 € incl. VAT

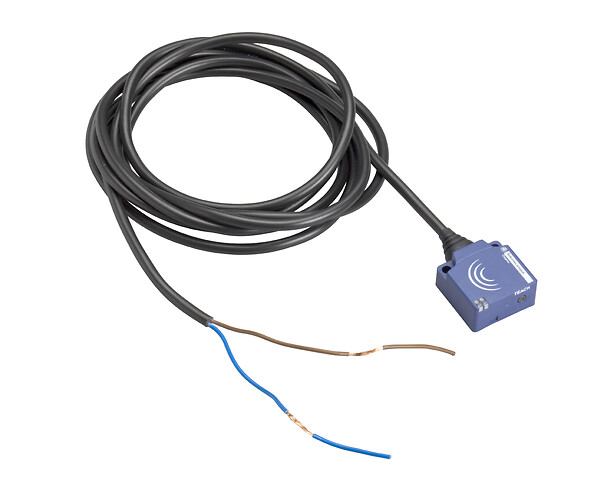

Inductive proximity sensors XS, little square 17x17mm, PBT, non flush, Sn 8 mm, NPN, NO, cable 2 m - Telemecanique
Inductive proximity sensors XS, little square 17x17mm, PBT, non flush, Sn 8 mm, NPN, NO, cable 2 m
SPECIFICATIONS
Main
Body type
Fixed
Series name
Basic
sensor name
XS8
Complementary
cable composition
3 x 0.30 mm²
Current consumption
<= 15 mA no-load
detection face
Frontal
marking
CE
Device application
Not applicable
Discrete output function
1 NO
Enclosure material
PBT
Detector flush mounting acceptance
Non flush mountable
Differential travel
+/- 10 % of Sr
Material
Plastic
switching frequency
<= 800 Hz
Discrete output type
NPN
switching capacity in ma
<= 100 mA DC with overload and short-circuit protection
Front material
PBT
electrical connection
Cable
Sensor type
Inductive proximity sensor
Voltage drop
<2.5 V (closed)
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Wiring technique
3-wire
Type of output signal
Discrete
Wire insulation material
PVC
Environment
ip degree of protection
IP67 conforming to IEC 60529
Range of product
Telemecanique Inductive proximity sensors XS
vibration resistance
25 gn amplitude = +/- 1.5 mm (f = 10-50 Hz) conforming to IEC 60068-2-6
