XS8C4A4PCM12 - Inductive proximity sensors XS, inductive sensor XS8 40x40x117 - Telemecanique - Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn40 mm, 12...48 VDC, M12 - Telemecanique - 0
XS8C4A4PCM12 - Inductive proximity sensors XS, inductive sensor XS8 40x40x117 - Telemecanique - Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn40 mm, 12...48 VDC, M12 - Telemecanique - 0

XS8C4A4PCM12 – Telemecanique

On order
71,04 € excl. VAT
88,09 € incl. VAT

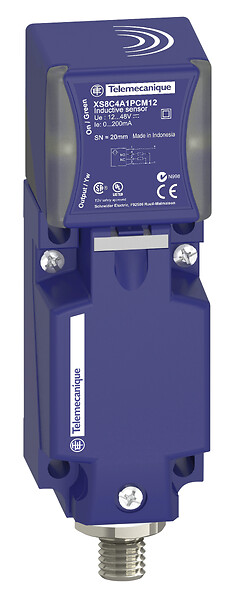

Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn40 mm, 12...48 VDC, M12 - Telemecanique
 In cart
88,09 €
Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn40 mm, 12...48 VDC, M12. This product is compatible with XZCP1141L5, XZCP1241L5
SPECIFICATIONS
Main
Body type Fixed
Series name General purpose
sensor name XS8
Complementary
Product certifications CSACCCTÜVULE2
[us] rated supply voltage 12...48 V DC with reverse polarity protection
Current consumption 0...15 mA no-load
detection face 5 positions turret head
marking CE
Device application Mobile equipment
Discrete output function 1 NO + 1 NC
Enclosure material PBT
Detector flush mounting acceptance Non flush mountable
safety reliability data MTTFd = 1546 years, PFHd = 7.4E-8 1/h, SFF = 92 %, DC = 75 % with appropriate safety controller
Differential travel 3...15% of Sr
Material Plastic
switching frequency <= 200 Hz
Discrete output type PNP
switching capacity in ma <= 200 mA with overload and short-circuit protection
repeat accuracy <= 3% of Sr
Front material PBT
electrical connection Male connector M12, 4 pins
output circuit type DC
Sensing range > 15...40 mm
Sensor type Inductive proximity sensor
Voltage drop <2 V (closed)
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Safety level SIL 2 conforming to IEC 61508, PL = d conforming to ISO 13849-1, SILCL 2 conforming to IEC 62061
Sensor design Form 40 x 40 x 117
Status led Supply on: 1 LED (green), output state: 1 LED (yellow)
Wiring technique 4-wire
Size 117 mm
Type of output signal Discrete
Environment
ip degree of protection IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050
Range of product Telemecanique Inductive proximity sensors XS
vibration resistance 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
