XS8C4A4DPG13 – Telemecanique
On order45,74 € excl. VAT
56,72 € incl. VAT

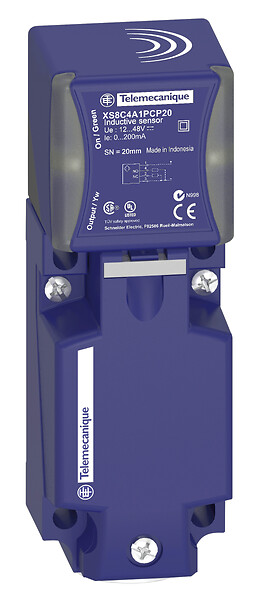

Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn40 mm, 12...48 VDC, terminals - Telemecanique
Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn40 mm, 12...48 VDC, terminals
SPECIFICATIONS
Main
Body type
Fixed
Series name
General purpose
sensor name
XS8
Complementary
Product certifications
CSACCCUL
[us] rated supply voltage
12...48 V DC with reverse polarity protection
detection face
5 positions turret head
marking
CE
Device application
Not applicable
Discrete output function
1 NO or 1 NC programmable
Enclosure material
PBT
Detector flush mounting acceptance
Non flush mountable
Differential travel
3...15% of Sr
Material
Plastic
switching frequency
<= 200 Hz
switching capacity in ma
1.5...100 mA with overload and short-circuit protection
repeat accuracy
<= 3% of Sr
Front material
PBT
electrical connection
Screw-clamp terminals, 4 x 1.5 mm²
output circuit type
DC
Sensing range
> 15...40 mm
Sensor type
Inductive proximity sensor
Voltage drop
<4.2 V (closed)
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Sensor design
Form 40 x 40 x 117
Status led
Output state: 1 LED (yellow)
Wiring technique
2-wire
Size
117 mm
Type of output signal
Discrete
Environment
ip degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050
Range of product
Telemecanique Inductive proximity sensors XS
vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
