XS7T2DA214LD01 – Telemecanique
On order108,62 € excl. VAT
134,69 € incl. VAT

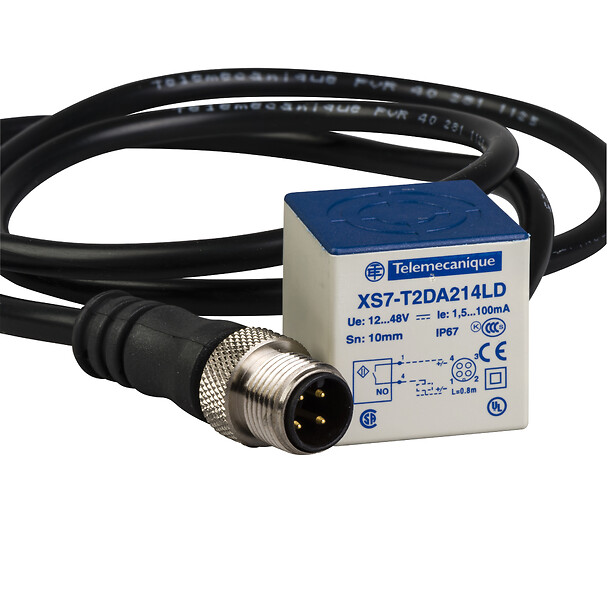

Inductive proximity sensors XS, inductive sensor XS7 26x26x26, plastic, Sn10mm, 12...48 VDC, M12 - Telemecanique
Inductive proximity sensors XS, inductive sensor XS7 26x26x26, plastic, Sn10mm, 12...48 VDC, M12.
This product is compatible with XZCP1141L5. End of commercialisation. XS7T2DA214LD01 is replaced by the following product:: XS7E1A1CAL01M12
SPECIFICATIONS
Main
Body type
Fixed
product specific application
Not applicable
Series name
General purpose
sensor name
XS7
Complementary
Product certifications
CSACCCUL
[us] rated supply voltage
12...48 V DC
detection face
5 positions turret head
marking
CE
Discrete output function
1 NO
Enclosure material
Plastic
Detector flush mounting acceptance
Flush mountable
Material
Plastic
switching frequency
<= 100 Hz
switching capacity in ma
1.5...100 mA
Front material
Plastic
electrical connection
Remote male connector M12, 4 pins
output circuit type
DC
Sensing range
8...15 mm
Sensor type
Inductive proximity sensor
Sensor design
Cubic form 26 x 26 x 26
Wiring technique
2-wire
Size
26 mm
Type of output signal
Discrete
Environment
ip degree of protection
IP67
Range of product
Telemecanique Inductive proximity sensors XS
