XS7J1A1PAL2TF – Telemecanique
On order49,07 € excl. VAT
60,85 € incl. VAT

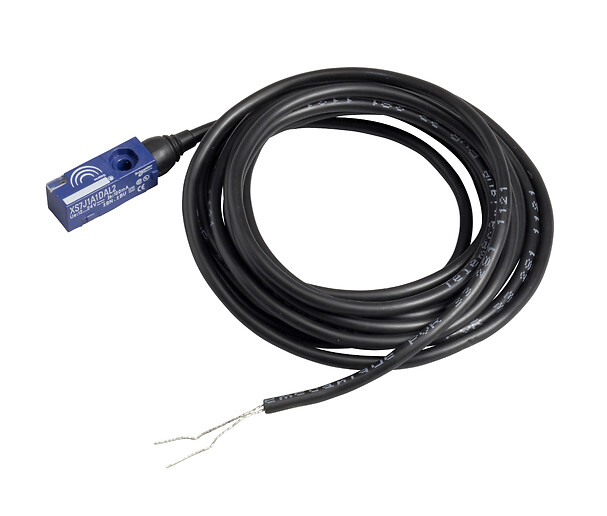

Inductive proximity sensors XS, inductive sensor XS7 8x22x8, PBT, Sn2.5 mm, 12...24 VDC, cable 2 m - Telemecanique
Inductive proximity sensors XS, inductive sensor XS7 8x22x8, PBT, Sn2.5 mm, 12...24 VDC, cable 2 m
SPECIFICATIONS
Main
Body type
Fixed
Series name
General purpose
sensor name
XS7
Complementary
cable composition
3 x 0.11 mm²
Product certifications
CSAULC-Tick
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
<= 10 mA no-load
detection face
Frontal
marking
CE
Device application
Not applicable
Discrete output function
1 NO
Enclosure material
PBT
Detector flush mounting acceptance
Flush mountable
Differential travel
1...15 % of Sr
Material
Plastic
switching frequency
<= 2000 Hz
Discrete output type
PNP
switching capacity in ma
<= 100 mA DC with overload and short-circuit protection
Front material
PBT
electrical connection
Cable
output circuit type
DC
Sensing range
> 0...2.5 mm
Sensor type
Inductive proximity sensor
Voltage drop
<2 V (closed)
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Sensor design
Flat form 8 x 22 x 8
Status led
Output state: 1 LED (yellow)
Wiring technique
3-wire
Size
8 mm
Type of output signal
Discrete
Wire insulation material
PVC
Environment
ip degree of protection
IP67 conforming to IEC 60529
Range of product
Telemecanique Inductive proximity sensors XS
vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
