XS7E1A1PBP01M12 – Telemecanique
On order96,18 € excl. VAT
119,26 € incl. VAT

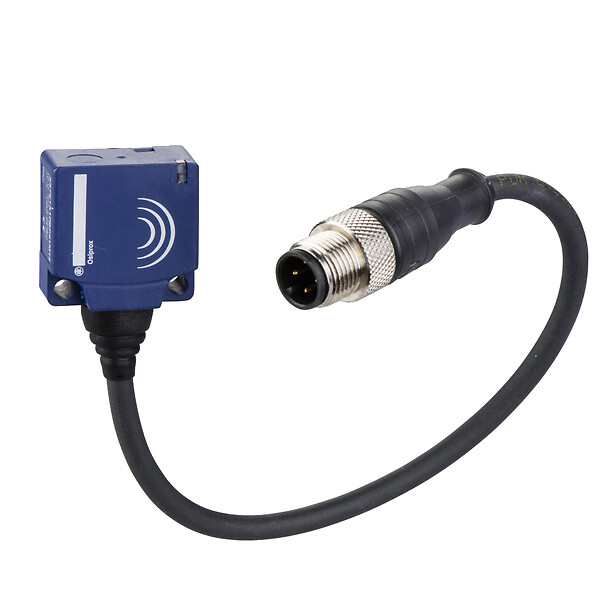

Inductive sensor XS7 26x26x13 - PBT - Sn10mm - 12..24VDC - M12 - Telemecanique
Inductive sensor XS7 26x26x13 - PBT - Sn10mm - 12..24VDC - M12.
This product is compatible with XZCP1141L5
SPECIFICATIONS
Main
Body type
Fixed
Series name
General purpose
sensor name
XS7
Complementary
Product certifications
CSAULC-TickEcolab
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
<= 10 mA no-load
detection face
Frontal
marking
CE
Device application
Not applicable
Discrete output function
1 NC
Enclosure material
PBT
Detector flush mounting acceptance
Flush mountable
Differential travel
1...15 % of Sr
Material
Plastic
switching frequency
<= 1000 Hz
Discrete output type
PNP
switching capacity in ma
<= 100 mA DC with overload and short-circuit protection
Front material
PBT
electrical connection
Male connector M12, 4 pins
output circuit type
DC
Sensing range
8...15 mm
Sensor type
Inductive proximity sensor
Voltage drop
<2 V (closed)
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Sensor design
Flat form 26 x 26 x 13
Status led
Output state: 1 LED (yellow)
Wiring technique
3-wire
Size
13 mm
Type of output signal
Discrete
Environment
ip degree of protection
IP67 conforming to IEC 60529
Range of product
Telemecanique Inductive proximity sensors XS
vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
