XS608B1NBM8 – Telemecanique
On order34,54 € excl. VAT
42,83 € incl. VAT

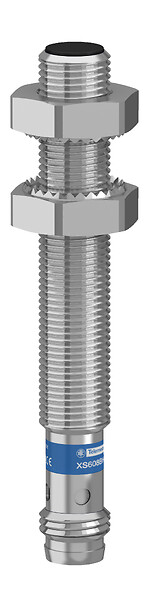

Inductive sensor XS6 M8 - L58mm - stainless - Sn2.5mm - 12..48VDC - M8 - Telemecanique
Inductive sensor XS6 M8 - L58mm - stainless - Sn2.5mm - 12..48VDC - M8.
This product is compatible with XSZB108, XZCP0566L5, XZCP0666L5
SPECIFICATIONS
Main
Body type
Fixed
Series name
General purpose
sensor name
XS6
Complementary
Product certifications
CSAUL
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
<= 10 mA no-load
detection face
Frontal
marking
CE
Discrete output function
1 NC
Enclosure material
Stainless steel 303
Detector flush mounting acceptance
Flush mountable
Differential travel
1...15 % of Sr
Material
Stainless steel
switching frequency
<= 2500 Hz
Discrete output type
NPN
switching capacity in ma
<= 200 mA DC with overload and short-circuit protection
Front material
PPS
thread type
M8 x 1
electrical connection
Male connector M8, 3 pins
output circuit type
DC
Sensing range
> 0...2.5 mm
Sensor type
Inductive proximity sensor
Voltage drop
<2 V (closed)
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Sensor design
Cylindrical M8
Status led
Output state: 1 LED (yellow)
Wiring technique
3-wire
Size
58 mm
Type of output signal
Discrete
Environment
ip degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Range of product
Telemecanique Inductive proximity sensors XS
vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
