XS512B1PAP5 – Telemecanique
On order92,00 € excl. VAT
114,08 € incl. VAT

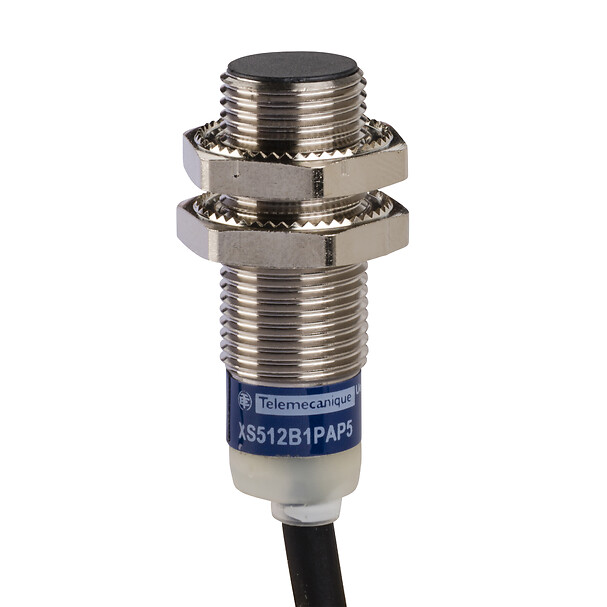

Inductive proximity sensors XS, inductive sensor XS5 M12, L37mm, brass, Sn2mm, 12...24 VDC, cable 5 m - Telemecanique
Inductive proximity sensors XS, inductive sensor XS5 M12, L37mm, brass, Sn2mm, 12...24 VDC, cable 5 m.
This product is compatible with XSZB112, XSZBS12
SPECIFICATIONS
Main
Body type
Fixed
product specific application
Not applicable
Series name
General purpose
sensor name
XS5
Complementary
iso thread
M12 x 1
cable composition
3 x 0.34 mm²
Product certifications
CSAUL
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
<= 10 mA no-load
detection face
Frontal
marking
CE
Discrete output function
1 NO
Enclosure material
Nickel plated brass
Detector flush mounting acceptance
Flush mountable
Differential travel
1...15 % of Sr
Material
Metal
switching frequency
<= 5000 Hz
Discrete output type
PNP
switching capacity in ma
<= 200 mA DC with overload and short-circuit protection
Front material
PPS
electrical connection
Cable
output circuit type
DC
Sensing range
> 0...2.5 mm
Sensor type
Inductive proximity sensor
Voltage drop
<2 V at closed state
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Sensor design
Cylindrical M12
Status led
Output state: 1 LED (yellow)
Wiring technique
3-wire
Size
37 mm
Type of output signal
Discrete
Wire insulation material
PVC
Environment
ip degree of protection
IP68 double insulation conforming to IEC 60529, IP69K conforming to DIN 40050
Range of product
Telemecanique Inductive proximity sensors XS
vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
