XS508B1DAL2TF – Telemecanique
On order85,73 € excl. VAT
106,30 € incl. VAT

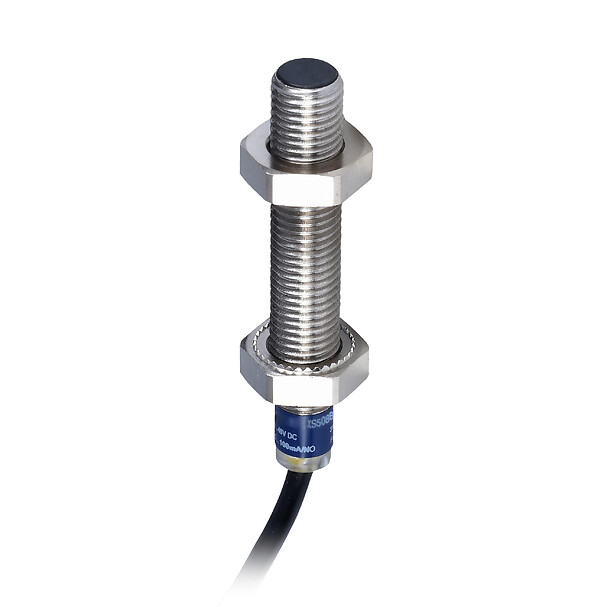

Inductive proximity sensors XS, inductive sensor XS5 M8, L51mm, stainless, Sn1.5 mm, 12...48 VDC, cable 2 m - Telemecanique
Inductive proximity sensors XS, inductive sensor XS5 M8, L51mm, stainless, Sn1.5 mm, 12...48 VDC, cable 2 m.
This product is compatible with XSZB108
SPECIFICATIONS
Main
Body type
Fixed
Series name
General purpose
sensor name
XS5
Complementary
cable composition
2 x 0.11 mm²
Product certifications
CSACCCUL
[us] rated supply voltage
12...48 V DC
detection face
Frontal
marking
CE
Device application
Not applicable
Discrete output function
1 NO
Enclosure material
Stainless steel 303
Detector flush mounting acceptance
Flush mountable
Differential travel
1...15 % of Sr
Material
Stainless steel
switching frequency
<= 4000 Hz
switching capacity in ma
1.5...100 mA DC with overload and short-circuit protection
Front material
PPS
thread type
M8 x 1
electrical connection
Cable
output circuit type
DC
Sensing range
> 0...2.5 mm
Sensor type
Inductive proximity sensor
Voltage drop
<4 V (closed)
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Sensor design
Cylindrical M8
Status led
Output state: 1 LED (yellow)
Wiring technique
2-wire
Size
51 mm
Type of output signal
Discrete
Wire insulation material
PVC
Environment
ip degree of protection
IP67 conforming to IEC 60529
Range of product
Telemecanique Inductive proximity sensors XS
vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
