XS504R1PAL2 – Telemecanique
On order39,54 € excl. VAT
49,02 € incl. VAT

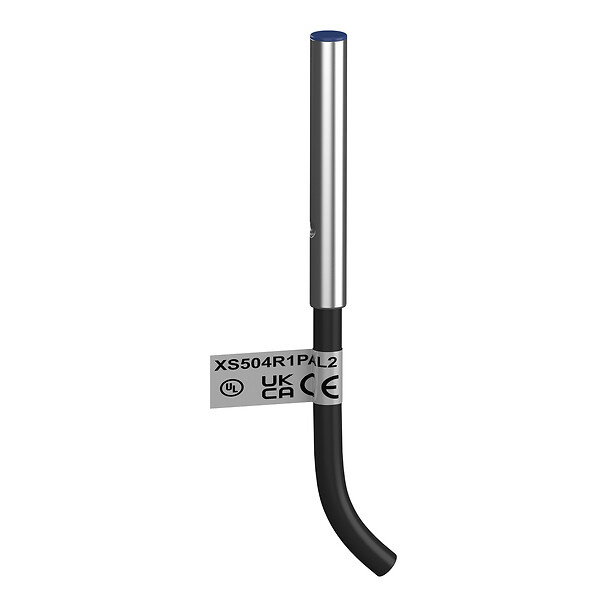

Miniature inductive sensor, D4 plain, L31mm, stainless, Sn0.8mm, cable 2m - Telemecanique
Miniature inductive sensor, D4 plain, L31mm, stainless, Sn0.8mm, cable 2m
SPECIFICATIONS
Main
Body type
Fixed
Series name
Miniature
sensor name
XS5
Complementary
cable composition
3 x 0.14 mm²
Product certifications
UL
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
<= 10 mA no-load
detection face
Frontal
marking
CEUKCA
Discrete output function
1 NO
Enclosure material
Stainless steel 303
Detector flush mounting acceptance
Quasi flush mountable
Differential travel
1...20 % of Sr
Material
Stainless steel
switching frequency
<= 5000 Hz
Discrete output type
PNP
switching capacity in ma
<= 100 mA DC with overload and short-circuit protection
Front material
PBT
electrical connection
Cable
output circuit type
DC
Sensing range
> 0...2.5 mm
Sensor type
Inductive proximity sensor
Voltage drop
<1.5 V
Sensor design
Cylindrical Ø 4 mm plain
Status led
Output state: 1 LED (yellow)
Wiring technique
3-wire
Size
30.2 mm
Type of output signal
Discrete
Wire insulation material
PVC
Environment
ip degree of protection
IP67
Range of product
Telemecanique Inductive proximity sensors XS
