XS108BHPAM12 – Telemecanique
On order16,46 € excl. VAT
20,42 € incl. VAT

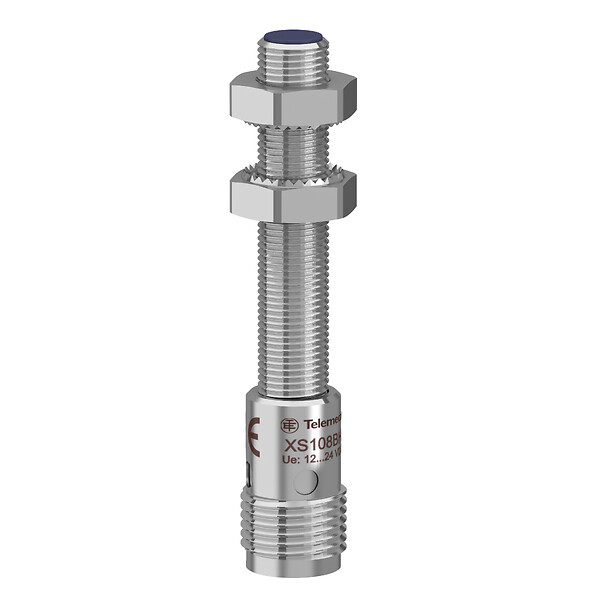

Inductive sensor XS1 M8, L61mm, brass, Sn2.5mm, 12..24VDC, M12 - Telemecanique
Inductive sensor XS1 M8, L61mm, brass, Sn2.5mm, 12..24VDC, M12.
This product is compatible with XSZB108, XZCP1141L5, XZCP1241L5
SPECIFICATIONS
Main
Body type
Fixed
Series name
General purpose
sensor name
XS1
Complementary
iso thread
M8 x 1
Product certifications
CSAUL
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
<= 10 mA no-load
detection face
Frontal
marking
CE
Discrete output function
1 NO
Enclosure material
Nickel plated brass
Detector flush mounting acceptance
Flush mountable
Differential travel
1...15 % of Sr
Material
Metal
switching frequency
<= 2500 Hz
Discrete output type
PNP
switching capacity in ma
<= 200 mA with overload and short-circuit protection
Front material
PPS
electrical connection
Male connector M12, 4 pins
output circuit type
DC
Sensing range
> 0...2.5 mm
Sensor type
Inductive proximity sensor
Voltage drop
<2 V (closed)
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Sensor design
Cylindrical M8
Status led
Output state: 1 LED (yellow)
Wiring technique
3-wire
Size
61 mm
Type of output signal
Discrete
Environment
ip degree of protection
IP67 conforming to IEC 60529
Range of product
Telemecanique Inductive proximity sensors XS
vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
