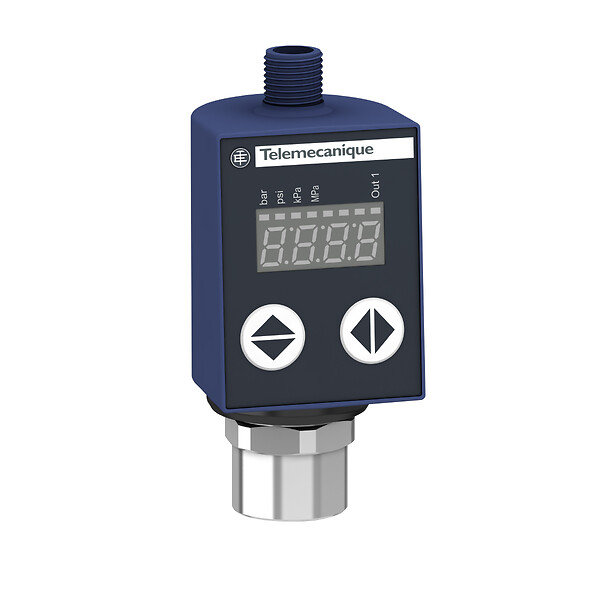

XMLR016G1N25 – Telemecanique

On order
271,15 € excl. VAT
336,23 € incl. VAT
Electronic pressure sensors, Pressure sensors XM, XMLR 16 bar, G 1/4, 24 VDC, 4...20 mA, NPN, M12 - Telemecanique
 In cart
336,23 €
Electronic pressure sensors, Pressure sensors XM, XMLR 16 bar, G 1/4, 24 VDC, 4...20 mA, NPN, M12. This product is compatible with XMLZL009, XMLZL017, XZCC12FCM40B, XZCC12FDM40B, XZCP1141L2, XZCP1241L2
SPECIFICATIONS
Main
Device short name XMLR
Fluid connection type G 1/4 (female) conforming to DIN 3852-Y
controlled fluid Fresh water (0-80 °C), air (-20-80 °C), hydraulic oil (-20-80 °C), refrigeration fluid (-20-80 °C)
Pressure switch type of operation Pressure transmitter with 1 switching output
pressure sensor type Pressure transmitter
Complementary
Accuracy <= 1 % of the measuring range
Product certifications cULus
Product or component type Electronic pressure sensors
[us] rated supply voltage 24 V DC SELV (voltage limits: 17-33 V)
Analogue output function 4...20 mA
Current consumption <= 50 mA
marking CE
hysteresis <= 0.2 % of the measuring range
Contacts type and composition NO/NC programmable
Drift of the sensitivity +/- 0,03 % of measuring range/°C
Drift of the zero point +/- 0,01 % of measuring range/°C
Local signalling 1 LED (yellow) for light ON when switch is actuated
Display accuracy <= 1 % of the measuring range
Discrete output type Solid state NPN, NO/NC programmable
Display response time type Fast 50 ms, normal 200 ms, slow 600 ms
measurement accuracy <= 0.6 % of the measuring range
Operating position Any position, but disposals can falsified the measurement in case of upside down mounting
Display type 4 digits 7 segments
repeat accuracy <= 0.2 % of the measuring range
Front material Polyester
Housing material 316L stainless steelpolyacrylamide
Materials in contact with fluid 316L stainless steelceramicfluorocarbon FKM (Viton)
Time delay range 0...50 s in steps of 1 second
electrical connection Male connector M12, 4 pins
linearity error <= 0.5 % of the measuring range
Voltage drop 2 VOLT
Shock resistance 50 gn conforming to IEC 60068-2-27
Response time on output <= 10 ms for analog output, <= 5 ms for discrete output
Scale type Fixed differential
Type of output signal Analogue + discrete
Protection type Overload protectionshort-circuit protectionovervoltage protectionreverse polarity
Environment
ip degree of protection IP65 conforming to IEC 60529, IP67 conforming to IEC 60529
Range of product Telemecanique Pressure sensors XM
electromagnetic compatibility Susceptibility to electromagnetic fields: 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, immunity to conducted RF disturbances: 10 V 0.15...80 MHz conforming to IEC 61000-4-6, surge immunity test: 1 kV conforming to IEC 61000-4-5, electrical fast transient/burst immunity test: 2 kV conforming to IEC 61000-4-4, electrostatic discharge immunity test: 8 kV air, 4 kV contact conforming to IEC 61000-4-2
standards UL 61010-1IEC 61326-2-3
vibration resistance 20 gn (f= 10-2000 Hz) conforming to IEC 60068-2-6
