XMLPM60RC23F - Electronic pressure sensors, Pressure sensors XM - Telemecanique - Electronic pressure sensors, Pressure sensors XM, transmitter -14,5...60 PSI, 4...20 mA, 1/4 18NPT male, FPM, DIN - Telemecanique - 0
XMLPM60RC23F - Electronic pressure sensors, Pressure sensors XM - Telemecanique - Electronic pressure sensors, Pressure sensors XM, transmitter -14,5...60 PSI, 4...20 mA, 1/4 18NPT male, FPM, DIN - Telemecanique - 0

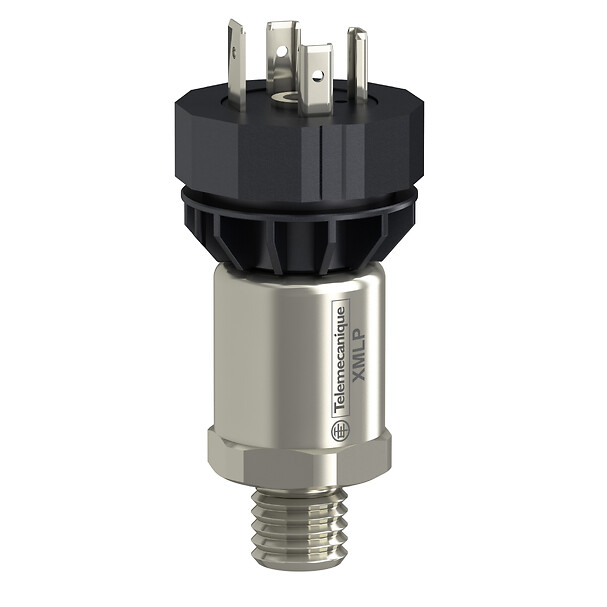

XMLPM60RC23F – Telemecanique

On order
126,38 € excl. VAT
156,72 € incl. VAT
Electronic pressure sensors, Pressure sensors XM, transmitter -14,5...60 PSI, 4...20 mA, 1/4 18NPT male, FPM, DIN - Telemecanique
 In cart
156,72 €
Electronic pressure sensors, Pressure sensors XM, transmitter -14,5...60 PSI, 4...20 mA, 1/4 18NPT male, FPM, DIN
SPECIFICATIONS
Main
Fluid connection type 1/4" - 18 NPT (male)
controlled fluid Fresh water (0-125 °C), air (-15-125 °C), gas (-15-125 °C), hydraulic oil (-15-125 °C)
Type of packing Individual
pressure sensor name XMLP
pressure sensor type Pressure transmitter
Complementary
Accuracy 0.1 % of the measuring range
local display Without
Product certifications CERCMcULus
Product or component type Electronic pressure sensors
[us] rated supply voltage 12...24 V DC SELV (voltage limits: 7-33 V)
Analogue output function 4...20 mA, 2-wire
Current consumption < 23 mA
Quantity per set Set of 1
Drift of the sensitivity +/- 0,02 % of measuring range/°K
Drift of the zero point +/- 0,02 % of measuring range/°K
Electrical circuit type Control circuit
measurement accuracy +/- 0,5 % de la plage de mesure
Operating position Any position
repeat accuracy +/- 0,25 % de la plage de mesure
Materials in contact with fluid Fluorocarbon FPMceramicstainless steel AISI 316L
electrical connection 1 male connector EN 175301-803-A (ex DIN43650) 3 pins
Shock resistance 100 gn for 11 ms conforming to IEC 60068-2-27
Response time on output <= 2 ms 10...90 % of full scale
Type of output signal Analogue
Protection type Load short-circuitreverse polarity
Environment
ip degree of protection IP65 conforming to IEC 60529
Range of product Telemecanique Pressure sensors XM
electromagnetic compatibility Susceptibility to electromagnetic fields conforming to IEC 61000-4-3 10 V/m 80...1000 MHz, radiated RF fields conforming to IEC 61000-4-6 10 V 0.15...80 MHz, electrostatic discharge immunity test conforming to IEC 61000-4-2 8 kV air, 4 kV contact, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 1 kV 42 Ohm, immunity to magnetic fields conforming to IEC 61000-4-8 100 A/m 50 Hz, electrical fast transient/burst immunity test conforming to IEC 61000-4-4 4 kV
standards IEC 61326-2-3NSF ANSI 61
vibration resistance 20 gn (f = 10-2000 Hz) conforming to IEC 60068-2-6
