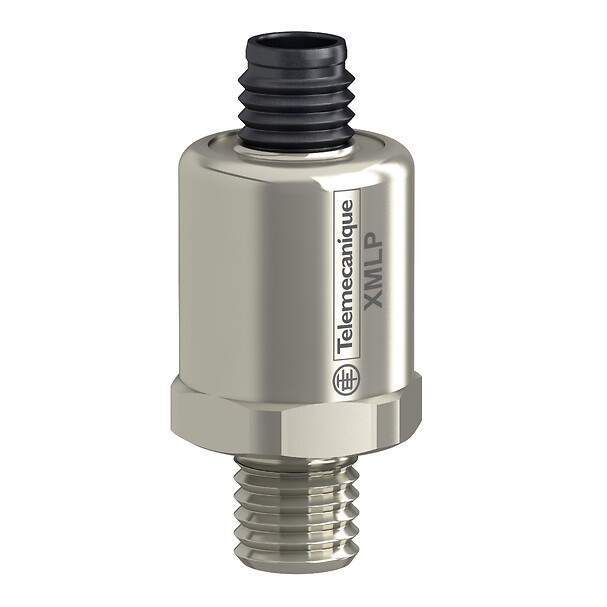

XMLPM00RD23FQ – Telemecanique

On order
74,32 € excl. VAT
92,16 € incl. VAT
Electronic pressure sensors, Pressure sensors XM, vacuum transmitter -14,5 PSI, 4...20 mA, 1/4 18NPT male, FPM, M12 - Telemecanique
 In cart
92,16 €
Electronic pressure sensors, Pressure sensors XM, vacuum transmitter -14,5 PSI, 4...20 mA, 1/4 18NPT male, FPM, M12. This product is compatible with XMLZL016, XZCC12FDM40B, XZCC43FCP40B, ZMLPA1P2SH, ZMLPA1P2SW
SPECIFICATIONS
Main
Fluid connection type 1/4" - 18 NPT (male)
controlled fluid Fresh water (0-125 °C), air (-15-125 °C), gas (-15-125 °C), hydraulic oil (-15-125 °C)
Type of packing Group
pressure sensor name XMLP
pressure sensor type Pressure transmitter
Complementary
Accuracy 0.1 % of the measuring range
local display Without
Product certifications CERCMcULus
Product or component type Electronic pressure sensors
[us] rated supply voltage 12...24 V DC SELV (voltage limits: 7-33 V)
Analogue output function 4...20 mA, 2-wire
Current consumption < 23 mA
Quantity per set Set of 25
Drift of the sensitivity +/- 0,02 % of measuring range/°K
Drift of the zero point +/- 0,02 % of measuring range/°K
Electrical circuit type Control circuit
measurement accuracy +/- 0,5 % de la plage de mesure
Operating position Any position
repeat accuracy +/- 0,25 % de la plage de mesure
Materials in contact with fluid Fluorocarbon FPMceramicstainless steel AISI 316L
electrical connection 1 male connector M12 4 pins
Shock resistance 100 gn for 11 ms conforming to IEC 60068-2-27
Response time on output <= 2 ms 10...90 % of full scale
Type of output signal Analogue
Protection type Load short-circuitreverse polarity
Environment
ip degree of protection IP65 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69K conforming to DIN 40050
Range of product Telemecanique Pressure sensors XM
electromagnetic compatibility Susceptibility to electromagnetic fields conforming to IEC 61000-4-3 10 V/m 80...1000 MHz, radiated RF fields conforming to IEC 61000-4-6 10 V 0.15...80 MHz, electrostatic discharge immunity test conforming to IEC 61000-4-2 8 kV air, 4 kV contact, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 1 kV 42 Ohm, immunity to magnetic fields conforming to IEC 61000-4-8 100 A/m 50 Hz, electrical fast transient/burst immunity test conforming to IEC 61000-4-4 4 kV
standards IEC 61326-2-3NSF ANSI 61
vibration resistance 20 gn (f = 10-2000 Hz) conforming to IEC 60068-2-6
