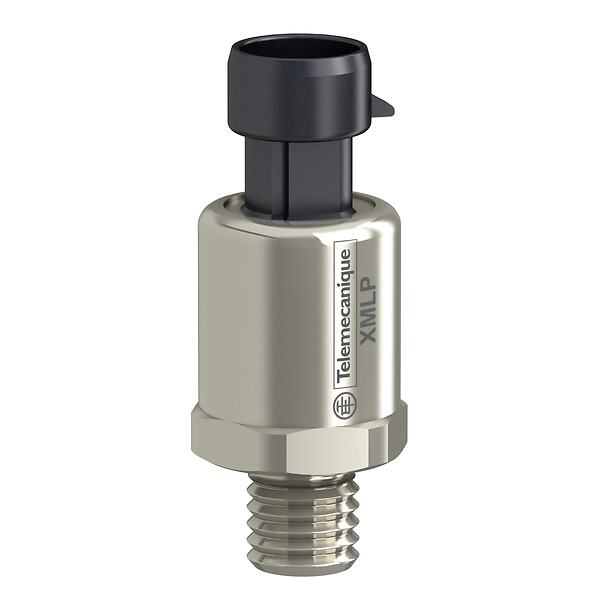

XMLP600PP130 - Telemecanique ⚡

XMLP600PP130 - Electronic pressure sensors, Pressure sensors XM - Telemecanique - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 600 PSI, 1/4

XMLP600PP130 – Telemecanique

On order

117,23 € excl. VAT

145,37 € incl. VAT

Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 600 PSI, 1/4"18NPT, 0,5...4,5 V, Packard, set 1 - Telemecanique

In cart

145,37 €

Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 600 PSI, 1/4"18NPT, 0,5...4,5 V, Packard, set 1

SPECIFICATIONS

Main

Fluid connection type 1/4" - 18 NPT (male)

controlled fluid Fresh water (0-135 °C), air (-40-135 °C), hydraulic oil (-40-135 °C), gas (-40-135 °C), refrigeration fluid (-40-135 °C)

Type of packing Individual

pressure sensor name XMLP

pressure sensor type Pressure transmitter

Complementary

Accuracy 0.1 % of the measuring range

local display Without

Product certifications CERCMcULus

Product or component type Electronic pressure sensors

[us] rated supply voltage 5 V DC SELV (voltage limits: 4.5-5.5 V)

Analogue output function 0.5...4.5 V, 3-wire

Current consumption < 7 mA

Quantity per set Set of 1

Drift of the sensitivity +/- 0,02 % of measuring range/°K

Drift of the zero point +/- 0,02 % of measuring range/°K

Electrical circuit type Control circuit

measurement accuracy +/- 0,5 % de la plage de mesure

Operating position Any position

Materials in contact with fluid Stainless steel AISI 316L

electrical connection 1 male connector Packard Metripack 150 3 pins

Shock resistance 100 gn for 11 ms conforming to IEC 60068-2-27

Response time on output <= 2 ms 10...90 % of full scale

Type of output signal Analogue

Protection type Load short-circuitreverse polarity

Environment

ip degree of protection IP65 conforming to IEC 60529, IP67 conforming to IEC 60529

Range of product Telemecanique Pressure sensors XM

electromagnetic compatibility Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 2 kV, electrostatic discharge immunity test conforming to IEC 61000-4-2 8 kV air, 4 kV contact, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 1 kV 42 Ohm, immunity to magnetic fields conforming to IEC 61000-4-8 100 A/m 50 Hz, susceptibility to electromagnetic fields conforming to IEC 61000-4-3 10 V/m 80...3000 MHz, radiated RF fields conforming to IEC 61000-4-6 10 V 0.01...80 MHz

standards IEC 61326-2-3NSF ANSI 61

vibration resistance 20 gn (f = 15-2000 Hz) conforming to IEC 60068-2-6

protective treatment TC
