XMLP250MD21F - Telemecanique ⚡

XMLP250MD21F - Electronic pressure sensors, Pressure sensors XM - Telemecanique - Electronic pressure sensors, Pressure sensors XM, transmitter 250mbar, 4...20 mA, G1/4 A male, FPM, M12 - Telemecanique - 0

XMLP250MD21F – Telemecanique

On order

108,14 € excl. VAT

134,10 € incl. VAT

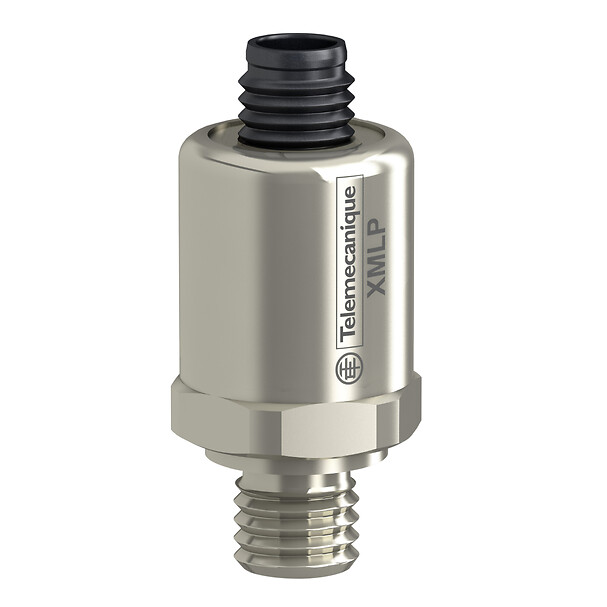

Electronic pressure sensors, Pressure sensors XM, transmitter 250mbar, 4...20 mA, G1/4 A male, FPM, M12 - Telemecanique

In cart

134,10 €

Electronic pressure sensors, Pressure sensors XM, transmitter 250mbar, 4...20 mA, G1/4 A male, FPM, M12. This product is compatible with XMLZL016, XMLZL017, XZCC12FDM40B, XZCC43FCP40B, ZMLPA1P2SH, ZMLPA1P2SW

SPECIFICATIONS

Main

Fluid connection type G 1/4A (male) conforming to DIN 3852-E

controlled fluid Fresh water (0-125 °C), air (-15-125 °C), gas (-15-125 °C), hydraulic oil (-15-125 °C)

Type of packing Individual

pressure sensor name XMLP

pressure sensor type Pressure transmitter

Complementary

local display Without

Product certifications CERCMcULus

Product or component type Electronic pressure sensors

[us] rated supply voltage 12...24 V DC SELV (voltage limits: 7-33 V)

Analogue output function 4...20 mA, 2-wire

Current consumption < 23 mA

Quantity per set Set of 1

Drift of the sensitivity +/- 0,02 % of measuring range/°K

Drift of the zero point +/- 0.05 % of measuring range/°K

Electrical circuit type Control circuit

measurement accuracy +/- 2 % of the measuring range

Operating position Any position

repeat accuracy +/- 0,2 % de la plage de mesure

Materials in contact with fluid Fluorocarbon FPMceramicstainless steel AISI 316L

electrical connection 1 male connector M12 4 pins

Shock resistance 100 gn for 11 ms conforming to IEC 60068-2-27

Response time on output <= 2 ms 92 % of full scale

Type of output signal Analogue

Protection type Load short-circuitreverse polarity

Environment

ip degree of protection IP65 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69K conforming to DIN 40050

Range of product Telemecanique Pressure sensors XM

electromagnetic compatibility Susceptibility to electromagnetic fields conforming to IEC 61000-4-3 10 V/m 80...1000 MHz, radiated RF fields conforming to IEC 61000-4-6 10 V 0.15...80 MHz, electrostatic discharge immunity test conforming to IEC 61000-4-2 8 kV air, 4 kV contact, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 1 kV 42 Ohm, immunity to magnetic fields conforming to IEC 61000-4-8 100 A/m 50 Hz, electrical fast transient/burst immunity test conforming to IEC 61000-4-4 4 kV

standards IEC 61326-2-3NSF ANSI 61

vibration resistance 20 gn (f = 10-2000 Hz) conforming to IEC 60068-2-6
