XMLG160D77TQ - Electronic pressure sensors, Pressure sensors XM - Telemecanique - Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 8...160 bar, 7/16 20UNF male, 24 V, 0...10 V, set of 25 - Telemecanique - 0
XMLG160D77TQ - Electronic pressure sensors, Pressure sensors XM - Telemecanique - Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 8...160 bar, 7/16 20UNF male, 24 V, 0...10 V, set of 25 - Telemecanique - 0

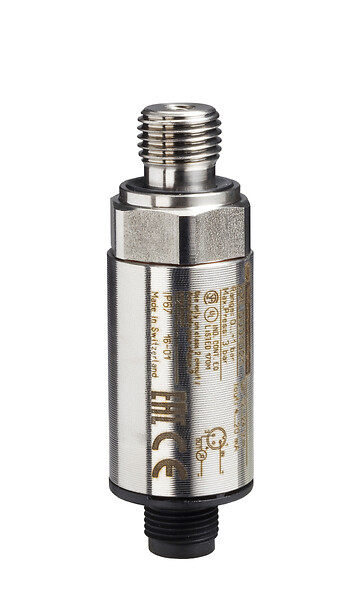

XMLG160D77TQ – Telemecanique

On order
203,36 € excl. VAT
252,17 € incl. VAT
Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 8...160 bar, 7/16 20UNF male, 24 V, 0...10 V, set of 25 - Telemecanique
 In cart
252,17 €
Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 8...160 bar, 7/16 20UNF male, 24 V, 0...10 V, set of 25. This product is compatible with XZCC12FCM40B, XZCC12FDM40B, XZCP1141L2
SPECIFICATIONS
Main
Fluid connection type SAE 7/16-20UNF-2A (male)
controlled fluid Air (-15-125 °C), corrosive fluid (-15-125 °C), hydraulic oil (-15-125 °C), fresh water (0-125 °C)
Type of packing Group
pressure sensor name XMLG
pressure sensor type Pressure transmitter
Complementary
local display Without
Product certifications CSA C22-2 No 14UL 508
Product or component type Electronic pressure sensors
[us] rated supply voltage 24 V DC (voltage limits: 11.4-33 V)
Analogue output function 0...10 V, 3 wires
Current consumption 20 mA
nema degree of protection NEMA 4
Quantity per set Set of 25
Drift of the sensitivity +/- 0.015 % of measuring range/°C
Drift of the zero point +/- 0.015 % of measuring range/°C
Electrical circuit type Control circuit
measurement accuracy +/- 0.3 % of the measuring range
Operating position Any position
repeat accuracy +/- 0.1 % of the measuring range
Materials in contact with fluid PPSceramicFPM (Viton)stainless steel type AISI 303
electrical connection 1 male connector M12, 3 pins
Shock resistance 25 gn for 11 ms conforming to IEC 60068-2-27
Response time on output < 2 ms
Type of output signal Analogue
Protection type Load short-circuitreverse polarity
Environment
ip degree of protection IP66 conforming to IEC 60529, IP67 conforming to IEC 60529
Range of product Telemecanique Pressure sensors XM
standards CEIEC 61326-2-3
vibration resistance 20 gn (f= 9-2000 Hz) conforming to IEC 60028-2-6
protective treatment TC
