XGCS491B201 - Telemecanique ⚡

XGCS491B201 - Panel mounting smart antenna, Radio frequency identification XG - Telemecanique - Panel mounting smart antenna, Radio frequency identification XG, Standalone - Telemecanique - 0

XGCS491B201 – Telemecanique

On order

202,51 € excl. VAT

251,11 € incl. VAT

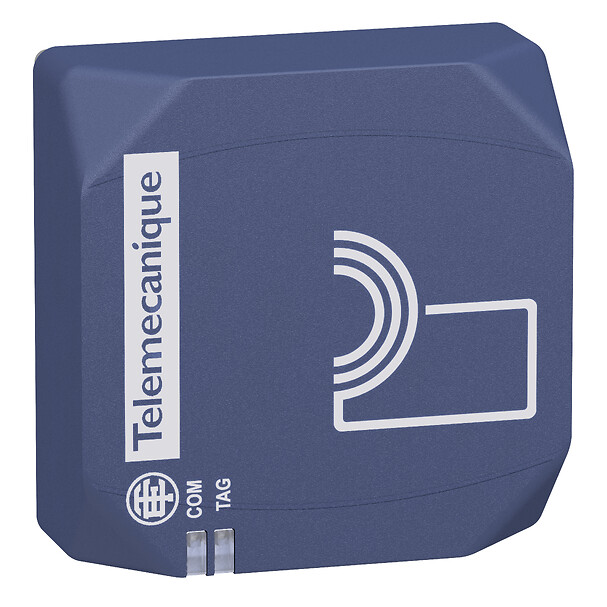

Panel mounting smart antenna, Radio frequency identification XG, Standalone - Telemecanique

In cart

251,11 €

Panel mounting smart antenna, Radio frequency identification XG, Standalone. This product is compatible with XGHB90E341, XGHBPB3345, XGSZCNFAC, ZB5AZ905

SPECIFICATIONS

Main

design Diameter 22 mounting

Complementary

product compatibility RFID microchip Texas (Tag-it HFI)RFID microchip Fujitsu (MB89R118 - MB89R119)RFID NXP Classic (1K/4K)

Outer dimension 40 x 40 x 40 mm

Product certifications CE

Product or component type Panel mounting smart antenna

tightening torque < 2.2 N.m

[us] rated supply voltage 24 V DC conforming to Protective Extra Low Voltage

Current consumption < 60 mA

marking CE

Discrete output function 1 NO

Ik degree of protection IK02 conforming to IEC 62262

Discrete output type PNP

switching capacity in ma 300 mA (overload and short-circuit protection)

electrical connection 5 pin(s)1 male connector M12

Operating mode Standalone

Shock resistance 30 gn for 11 ms conforming to IEC 60068-2-27

Status led RFID communication: 1 LED (dual colour), output state: 1 LED (dual colour)

Type of output signal Discrete

Environment

ip degree of protection IP65 conforming to IEC 60529

Range of product Telemecanique Radio frequency identification XG

electromagnetic compatibility Electrostatic discharge immunity test: (contact discharge), 3, 6 kV, conforming to IEC 61000-4-2, electrostatic discharge immunity test: (air discharge), 3, 8 kV, conforming to IEC 61000-4-2, electrical fast transient/burst immunity test: (signal ports), 3, 1 kV, conforming to IEC 61000-4-4, electrical fast transient/burst immunity test: (power ports), 3, 2 kV, conforming to IEC 61000-4-4, susceptibility to electromagnetic fields: , 3, 10 V/m, conforming to IEC 61000-4-3, 1.2/50 µs shock waves immunity test: , 3, 10 kV, conforming to IEC 61000-4-5, conducted RF disturbances: , 3, 10 V, conforming to IEC 61000-4-6, magnetic field at power frequency: , 4, 30 A/m, conforming to IEC 61000-4-8

standards ETSI EN 301 489-3ETSI EN 301 489-1ETSI EN 300 330-1ETSI EN 300 330-2

vibration resistance 2 mm (f= 5-29.5 Hz) conforming to IEC 60068-2-6, 7 gn (f= 29.5-150 Hz) conforming to IEC 60068-2-6
