XCSPL761 - Telemecanique ⚡

XCSPL761 - Guard switch, Telemecanique Safety switches XCS - Telemecanique - Guard switch, Telemecanique Safety switches XCS, XCSPL, straight lever, to right or to left, 2NC, Pg11 - Telemecanique - 0

XCSPL761 – Telemecanique

On order

33,50 € excl. VAT

41,54 € incl. VAT

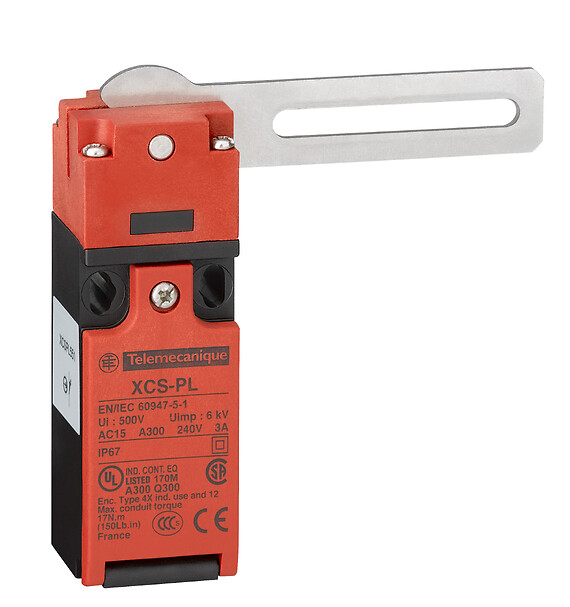

Guard switch, Telemecanique Safety switches XCS, XCSPL, straight lever, to right or to left, 2NC, Pg11 - Telemecanique

In cart

41,54 €

Guard switch, Telemecanique Safety switches XCS, XCSPL, straight lever, to right or to left, 2NC, Pg11

SPECIFICATIONS

Main

Operator direction information To right or to left

component name XCSPL

head type Turret head rotary lever

Complementary

Product certifications CSABGUL

Product or component type Guard switch

cable entry 1 entry tapped for Pg 11

Enclosure material Polyamide PA66 fibre glass impregnated

Clamping connection capacity 1 x 0.5...2 x 1.5 mm² with or without cable end

contact operation Slow-break

Contacts type and composition 1 NC + 1 NC

Electrical shock protection class Class II conforming to IEC 61140

safety reliability data B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear

Material Plastic

Type of operator Straight lever

contact code designation A300, AC-15 (Ue = 120 V, Ie = 6 A) conforming to IEC 60947-5-1, A300, AC-15 (Ue = 240 V, Ie = 3 A) conforming to IEC 60947-5-1, Q300, DC-13 (Ue = 125 V, Ie = 0.55 A) conforming to IEC 60947-5-1, Q300, DC-13 (Ue = 250 V, Ie = 0.27 A) conforming to IEC 60947-5-1

Lever material Stainless steel

Positive opening With NC contact

electrical connection Terminal

Insulation Double insulated

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Resistance across terminals 30 mOhm conforming to IEC 60947-5-4

Safety level Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508

Environment

ip degree of protection IP67 conforming to IEC 60529

Range of product Telemecanique Safety switches XCS

standards CSA C22.2 No 14IEC 60947-5-4ISO 12100UL 508IEC 60947-5-1EN 1088/ISO 14119IEC 60204-1

vibration resistance 50 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

protective treatment THTC
